APBS194UBK
ActiveHammond Manufacturing
ADJUST DEPTH WALL MNT RACK BLK
Deep-Dive with AI
Search across all available documentation for this part.
APBS194UBK
ActiveHammond Manufacturing
ADJUST DEPTH WALL MNT RACK BLK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | APBS194UBK |
|---|---|
| Color | Black |
| Dimensions - Overall [x] | 304.8 mm |
| Dimensions - Overall [x] | 12 in |
| Dimensions - Overall [y] | 19 " |
| Dimensions - Overall [y] | 482.6 mm |
| Dimensions - Overall [z] | 18 in |
| Dimensions - Overall [z] | 457.2 mm |
| Dimensions - Panel [x] | 214.38 mm |
| Dimensions - Panel [x] | 8.44 in |
| Dimensions - Panel [y] | 406.4 mm |
| Dimensions - Panel [y] | 16 " |
| Dimensions - Panel [z] | 457.2 mm |
| Dimensions - Panel [z] | 18 " |
| Material | Metal, Steel |
| Number of Units | 4U |
| Style | Enclosed, Bottom, Sides, Back |
| Type | Cabinet Rack |
| Ventilation | Non-Vented |
| Weight | 16 lbs |
| Weight | 7.3 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 145.82 | |
| 10 | $ 133.67 | |||
Description
General part information
APBS194 Series

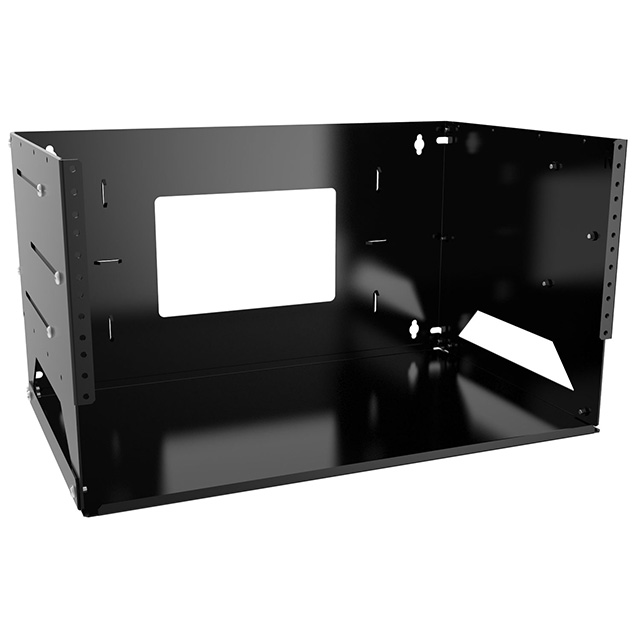

Metal, Steel Cabinet Rack Enclosed, Back, Bottom, Sides 12.000" L x 19.000" W x 18.000" H (304.80mm x 482.60mm x 457.20mm) Black
Documents
Technical documentation and resources
No documents available
