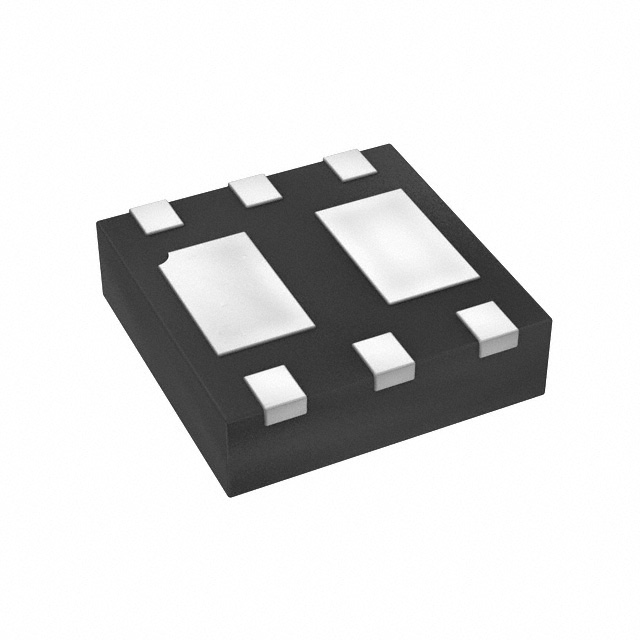

ZXTP56060FDBQ-7

Active

Diodes Inc

DUAL PNP, 60V, 2A, DFN2020-6 (SWP)

Search across all available documentation for this part.

Active

Diodes Inc

DUAL PNP, 60V, 2A, DFN2020-6 (SWP)

Technical Specifications

Parameters and characteristics for this part

Specification	ZXTP56060FDBQ-7

Current - Collector (Ic) (Max) [Max]	2 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	170 hFE
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-UDFN Exposed Pad
Power - Max [Max]	510 mW
Qualification	AEC-Q101
Supplier Device Package	U-DFN2020-6
Transistor Type	2 PNP (Dual)
Vce Saturation (Max) @ Ib, Ic	450 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	60 V

Dual PNP, 60V, 2A, DFN2020-6 (SWP)

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Mounting Type	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Transistor Type	Qualification	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Supplier Device Package
Diodes Inc ZXTP56060FDBQ-7	60 V	6-UDFN Exposed Pad	Surface Mount	Automotive	-55 °C	150 °C	510 mW	2 A	2 PNP (Dual)	AEC-Q101	100 nA	450 mV	170 hFE	U-DFN2020-6
