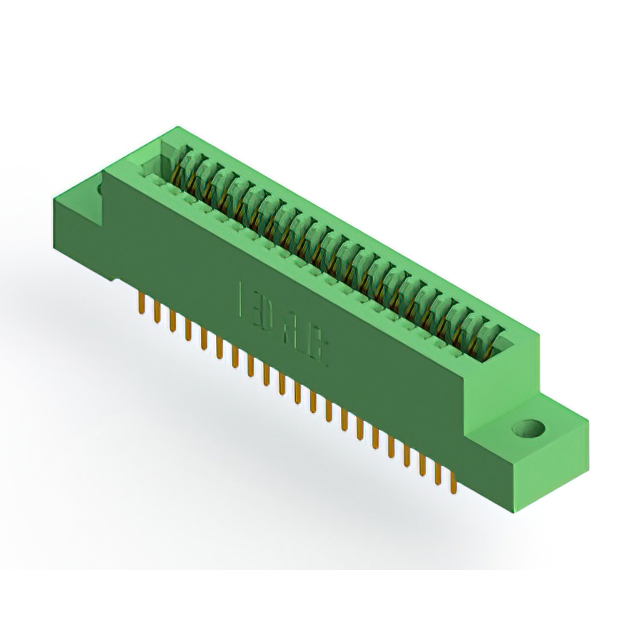

325-042-520-209
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 42 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
325-042-520-209
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 42 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-042-520-209 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 0.16 in |
| Flange Feature [diameter] | 4.06 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
325-042 Series
| Part | Read Out | Contact Type | Color | Gender | Contact Material | Number of Positions | Pitch [x] | Pitch [x] | Number of Rows | Flange Feature | Termination | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Termination Rows | Mounting Type | Card Type | Card Thickness | Card Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Cantilever | Green | Female | Copper Alloy | 42 | 2.54 mm | 0.1 in | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 2 | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 125 °C | -65 ░C | Gold | |||
EDAC Inc. | Dual | Cantilever | Green | Female | Copper Alloy | 42 | 2.54 mm | 0.1 in | 2 | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 2 | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 125 °C | -65 ░C | Gold | ||||
EDAC Inc. | Dual | Cantilever | Green | Female | Copper Alloy | 42 | 2.54 mm | 0.1 in | 2 | Flush Mount Top Opening Unthreaded | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 2 | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 125 °C | -65 ░C | Gold | 0.16 in | 4.06 mm | |
EDAC Inc. | Single | Cantilever | Green | Female | Copper Alloy | 42 | 2.54 mm | 0.1 in | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge | 3.18 mm | 0.125 in | 125 °C | -65 ░C | Gold | 42 | ||
EDAC Inc. | Dual | Cantilever | Green | Female | Copper Alloy | 42 | 2.54 mm | 0.1 in | 2 | Wire Wrap | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 2 | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 125 °C | -65 ░C | Gold | ||||
EDAC Inc. | Dual | Cantilever | Green | Female | Copper Alloy | 42 | 2.54 mm | 0.1 in | 2 | Flush Mount Top Opening Unthreaded | Solder | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 2 | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 125 °C | -65 ░C | Gold | 0.16 in | 4.06 mm | |
EDAC Inc. | Single | Cantilever | Green | Female | Copper Alloy | 42 | 2.54 mm | 0.1 in | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge | 3.18 mm | 0.125 in | 125 °C | -65 ░C | Gold | 42 | ||
EDAC Inc. | Dual | Cantilever | Green | Female | Copper Alloy | 42 | 2.54 mm | 0.1 in | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 2 | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 125 °C | -65 ░C | Gold | |||
EDAC Inc. | Dual | Cantilever | Green | Female | Copper Alloy | 42 | 2.54 mm | 0.1 in | 2 | Flush Mount M3 Threaded Insert Top Opening | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 2 | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | 125 °C | -65 ░C | Gold | |||
EDAC Inc. | Single | Cantilever | Green | Female | Copper Alloy | 42 | 2.54 mm | 0.1 in | 1 | Flush Mount Top Opening Unthreaded | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Diallyl Phthalate (DAP) | 1 | Through Hole | Non Specified - Single Edge | 3.18 mm | 0.125 in | 125 °C | -65 ░C | Gold | 0.16 in | 4.06 mm | 42 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
325-042 Series
42 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
