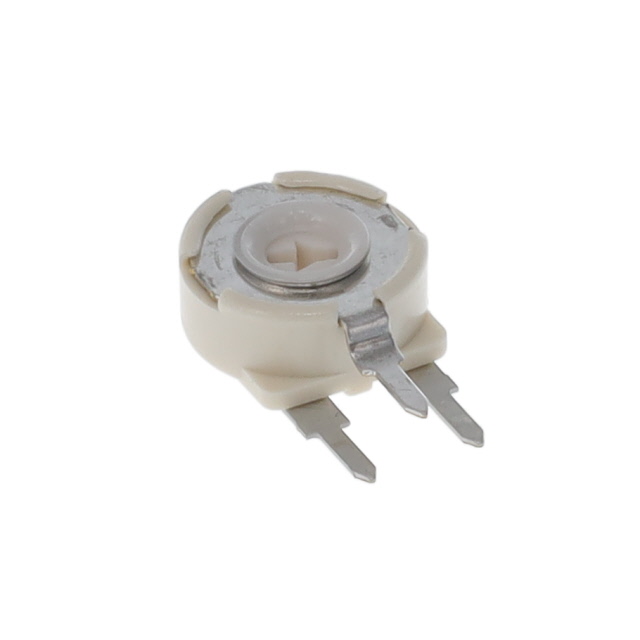

PTC10LH01-104A2020

Active

Amphenol Piher Sensing Systems

TRIMMER 100K OHM 0.33W PC PIN

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

TRIMMER 100K OHM 0.33W PC PIN

Technical Specifications

Parameters and characteristics for this part

Part	Resistance	Temperature Coefficient	Mounting Type	Number of Turns	Tolerance	Adjustment Type	Termination Style	Power (Watts)	Resistive Material	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension
Amphenol Piher Sensing Systems PTC10LH01-502A2020	5 kOhms	100 ppm/°C	Through Hole	1	20 %	Side Adjustment	PC Pins	0.33 W	Cermet	0.406 in	10.3 mm	Round
Amphenol Piher Sensing Systems PTC10LH01-202A2020	2 kOhms	100 ppm/°C	Through Hole	1	20 %	Side Adjustment	PC Pins	0.33 W	Cermet	0.406 in	10.3 mm	Round
Amphenol Piher Sensing Systems PTC10LH01-103A2020	10000 Ohms	100 ppm/°C	Through Hole	1	20 %	Side Adjustment	PC Pins	0.33 W	Cermet	0.406 in	10.3 mm	Round
Amphenol Piher Sensing Systems PTC10LH01-101A2020	100 Ohms	100 ppm/°C	Through Hole	1	20 %	Side Adjustment	PC Pins	0.33 W	Cermet	0.406 in	10.3 mm	Round
Amphenol Piher Sensing Systems PTC10LH01-254A2020	250 kOhms	100 ppm/°C	Through Hole	1	20 %	Side Adjustment	PC Pins	0.33 W	Cermet	0.406 in	10.3 mm	Round
Amphenol Piher Sensing Systems PTC10LH01-104A2020	100 kOhms	100 ppm/°C	Through Hole	1	20 %	Side Adjustment	PC Pins	0.33 W	Cermet	0.406 in	10.3 mm	Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 kOhms 0.33W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
