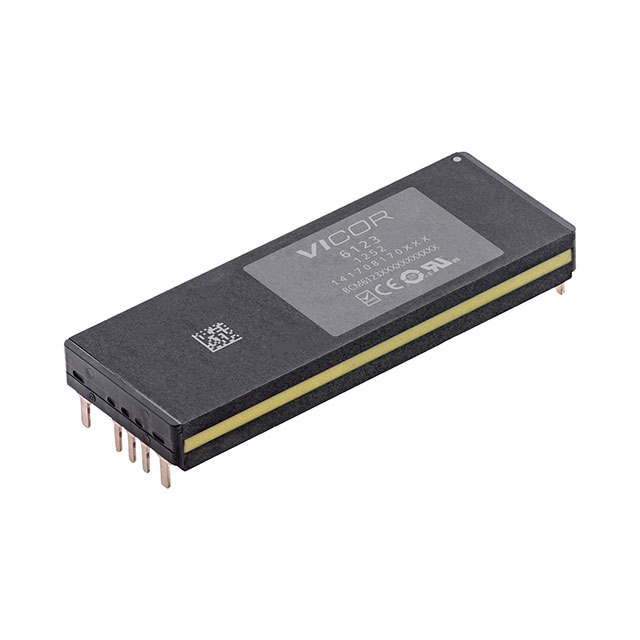

BCM384P120T1K5ACR

Active

Vicor Corporation

DC DC CONVERTER 12V 1500W

Search across all available documentation for this part.

Active

Vicor Corporation

DC DC CONVERTER 12V 1500W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Features	Applications	Voltage - Input (Min) [Min]	Mounting Type	Efficiency
Vicor Corporation BCM384P120M1K5AC0
Vicor Corporation BCM384P120T800AC0	800 W	4.242 kV	61 mm	2.4 in	25.1 mm	0.99 in	7.3 mm	0.29 "	Bus Converter Module	125 °C	-40 °C	12 V	24-DIP Module	1	410 V	68 A	OCP OTP OVP SCP UVLO	ITE (Commercial)	260 V	Through Hole
Vicor Corporation BCM384F480T325B00	325 W	4.242 kV	32.5 mm	1.28 in	22 mm	0.87 in	6.7 mm	0.26 "	Bus Converter Module	125 °C	-40 °C	48 V	Module	1	400 V	7.05 A	OCP OTP OVP SCP UVLO	ITE (Commercial)	360 V	Surface Mount	95 %
Vicor Corporation BCM384T120T300A00	300 W	4.242 kV	32.5 mm	1.28 in	22 mm	0.87 in	6.7 mm	0.26 "	Bus Converter Module	125 °C	-40 °C	12 V	Module	1	400 V	27.7 A	OCP OTP OVP SCP UVLO	ITE (Commercial)	360 V	Through Hole	95.5 %
Vicor Corporation BCM384P120T1K5ACR	1500 W	4.242 kV	61 mm	2.4 in	25.1 mm	0.99 in	7.3 mm	0.29 "	Bus Converter Module	125 °C	-40 °C	12 V	24-DIP Module	1	410 V	125 A	OCP OTP OVP SCP UVLO	ITE (Commercial)	260 V	Through Hole	97.4 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 251.24

General part information

Bus Converter Module DC DC Converter 1 Output 12V 125A 260V - 410V Input

Technical documentation and resources
