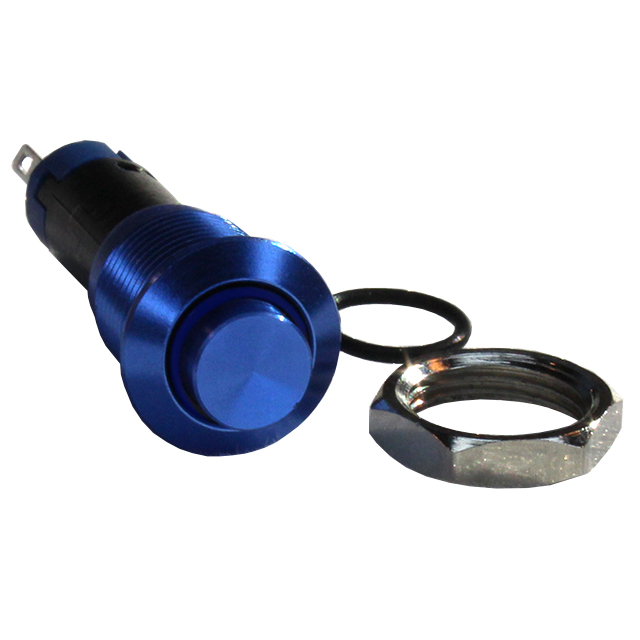

GHNEUBBN
ActiveCIT Relay and Switch
SWITCH PB SPST 2A 48V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GHNEUBBN
ActiveCIT Relay and Switch
SWITCH PB SPST 2A 48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GHNEUBBN |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Blue |
| Current Rating (Amps) | 2 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | LED, Blue |
| Ingress Protection | IP40 |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 10 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - DC | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 15.42 | |
| 10 | $ 13.31 | |||
| 25 | $ 12.55 | |||
| 40 | $ 12.17 | |||
| 80 | $ 11.64 | |||
| 230 | $ 10.88 | |||
| 440 | $ 10.43 | |||
| 945 | $ 9.93 | |||
Description
General part information
GHNEUB Series
Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
