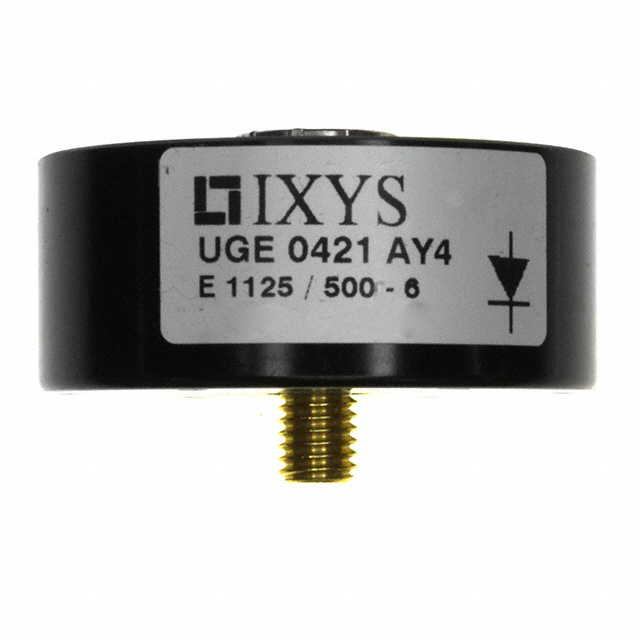

UGE0421AY4

Active

IXYS

DIODE GEN PURP 3.2KV 22.9A UGE

Search across all available documentation for this part.

Active

IXYS

DIODE GEN PURP 3.2KV 22.9A UGE

Technical Specifications

Parameters and characteristics for this part

Specification	UGE0421AY4

Current - Average Rectified (Io)	22.9 A
Current - Reverse Leakage @ Vr	2 mA
Mounting Type	Chassis Mount
Package / Case	UGE
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	UGE
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	3200 V
Voltage - Forward (Vf) (Max) @ If	2.72 V

Part	Voltage - Forward (Vf) (Max) @ If	Package / Case	Mounting Type	Speed	Speed	Supplier Device Package	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Technology
IXYS UGE0421AY4	2.72 V	UGE	Chassis Mount	Standard Recovery >500ns	200 mA	UGE	2 mA	22.9 A	3200 V	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 3200 V 22.9A Chassis Mount UGE

Technical documentation and resources

No documents available
