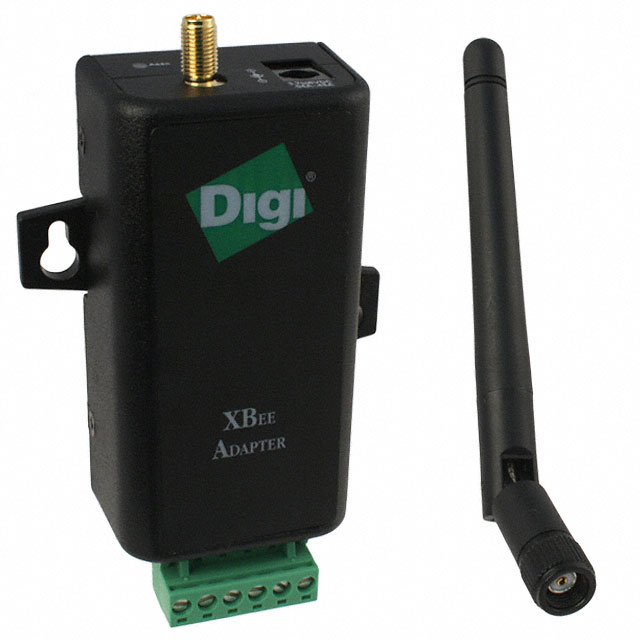

XA-Z14-CS4P-W

Obsolete

Digi

XBEE PRO DIGITAL EX RPSMA

Search across all available documentation for this part.

Obsolete

Digi

XBEE PRO DIGITAL EX RPSMA

Technical Specifications

Parameters and characteristics for this part

Part	Modulation or Protocol	Power - Output	Data Rate (Max)	Function	Interface	Applications	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity	Frequency	Power - Output	Voltage - Supply
Digi XA-Z14-CS3PH-W	ZigBee™	18 dBm	250 kbps	Adapter	RS-232 RS-422 RS-485	Wireless PAN	30 VDC	9 V	-102 dBm	2.4 GHz
Digi XA-Z14-CS3PH-A	DSSS	17 dBm	250 kbps	Transceiver ZigBee™	RS-485	General Purpose	30 VDC	9 V	-102 dBm	2.4 GHz	50 mW
Digi XA-Z14-CS3P-A	DSSS	17 dBm	250 kbps	Transceiver ZigBee™	RS-485	General Purpose			-102 dBm	2.4 GHz		5 V
Digi XA-Z14-CS4P-W	DSSS	10 dBm	250 kbps	Transceiver ZigBee™	Digital	General Purpose	6 V	3 V	-102 dBm	2.4 GHz
Digi XA-Z14-CS4PH-W	ZigBee™	18 dBm	250 kbps	Adapter	RS-232 RS-422 RS-485	Wireless PAN	30 VDC	9 V	-102 dBm	2.4 GHz
Digi XA-Z14-CE1P-W	ZigBee™	18 dBm	250 kbps	Adapter	RS-232 RS-422 RS-485	Wireless PAN	30 VDC	9 V	-102 dBm	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transceiver, ZigBee™ 2.4GHz DSSS Digital 250kbps

Technical documentation and resources
