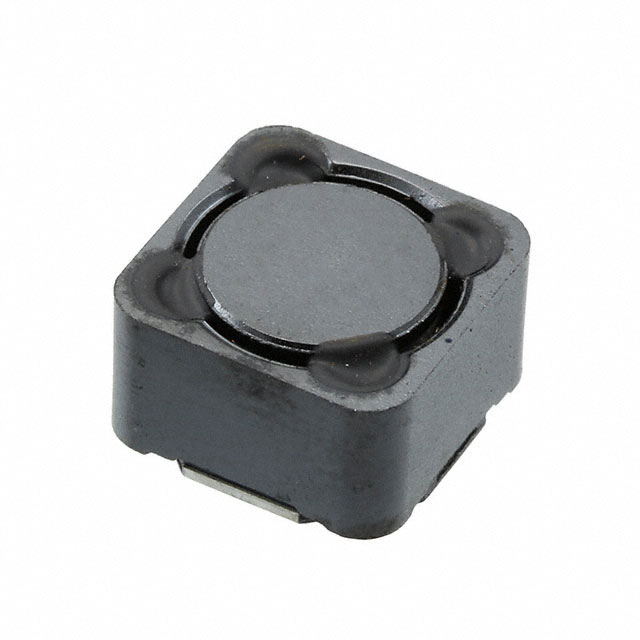

SRR1280A-150M

Active

Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 15UH 20% 1KHZ 26Q-FACTOR FERRITE 5.2A 0.0285OHM DCR AUTOMOTIVE AEC-Q200 T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRR1280A-150M

Active

Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 15UH 20% 1KHZ 26Q-FACTOR FERRITE 5.2A 0.0285OHM DCR AUTOMOTIVE AEC-Q200 T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR1280A-150M

Current - Saturation (Isat)	5 A
Current Rating (Amps)	5.2 A
DC Resistance (DCR)	28.5 mOhm
Frequency - Self Resonant	13 MHz
Height - Seated (Max) [Max] [z]	8 mm
Height - Seated (Max) [Max] [z]	0.315 in
Inductance	15 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	2.52 MHz, 26
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.492 in
Size / Dimension [x]	12.5 mm
Size / Dimension [y]	0.492 "
Size / Dimension [y]	12.5 mm
Supplier Device Package	1280
Tolerance	20 %

SRR1280A Series

Part	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Inductance	Tolerance	Material - Core	Current Rating (Amps)	Supplier Device Package	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Q @ Freq	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency - Self Resonant	Package / Case	Shielding	Inductance Frequency - Test	DC Resistance (DCR)
Bourns Inc. SRR1280A-100M	19.5 mOhm	6.3 A	10 µH	20 %	Ferrite	6 A	1280	AEC-Q200	125 °C	-40 °C	Surface Mount	2.52 MHz 24	0.492 in	0.492 "	12.5 mm	12.5 mm	8 mm	0.315 in	17 MHz	Nonstandard	Shielded
Bourns Inc. SRR1280A-270M		3.7 A	27 µH	20 %	Ferrite	3.9 A	1280	AEC-Q200	125 °C	-40 °C	Surface Mount	2.52 MHz 26	0.492 in	0.492 "	12.5 mm	12.5 mm	8 mm	0.315 in	10 MHz	Nonstandard	Shielded
Bourns Inc. SRR1280A-390M	70 mOhm	3.1 A	39 µH	20 %	Ferrite	3.2 A	1280	AEC-Q200	125 °C	-40 °C	Surface Mount	2.52 MHz 24	0.492 in	0.492 "	12.5 mm	12.5 mm	8 mm	0.315 in	8.5 MHz	Nonstandard	Shielded
Bourns Inc. SRR1280A-8R2Y		6.8 A	8.2 µH	30 %	Ferrite	6.2 A	1280	AEC-Q200	125 °C	-40 °C	Surface Mount	22 100 kHz	0.492 in	0.492 "	12.5 mm	12.5 mm	8 mm	0.315 in	20 MHz	Nonstandard	Shielded	100 kHz	20.5 mOhm
Bourns Inc. SRR1280A-150M		5 A	15 µH	20 %	Ferrite	5.2 A	1280	AEC-Q200	125 °C	-40 °C	Surface Mount	2.52 MHz 26	0.492 in	0.492 "	12.5 mm	12.5 mm	8 mm	0.315 in	13 MHz	Nonstandard	Shielded		28.5 mOhm
Bourns Inc. SRR1280A-181K	300 mOhm	1.88 A	180 µH	10 %	Ferrite	1.75 A	1280	AEC-Q200	125 °C	-40 °C	Surface Mount	24 796 kHz	0.492 in	0.492 "	12.5 mm	12.5 mm	8 mm	0.315 in	4 MHz	Nonstandard	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.37
		10	$ 1.16
		25	$ 1.06
		50	$ 0.99
		100	$ 0.82
	Digi-Reel®	1	$ 1.37
		10	$ 1.16
		25	$ 1.06
		50	$ 0.99
		100	$ 0.82
	Tape & Reel (TR)	400	$ 0.76
		800	$ 0.68
		1200	$ 0.65
		2800	$ 0.63
		10000	$ 0.59
Newark	Each (Supplied on Cut Tape)	250	$ 0.92

Description

General part information

SRR1280A Series

15 µH Shielded Inductor 5.2 A 28.5mOhm Max Nonstandard
