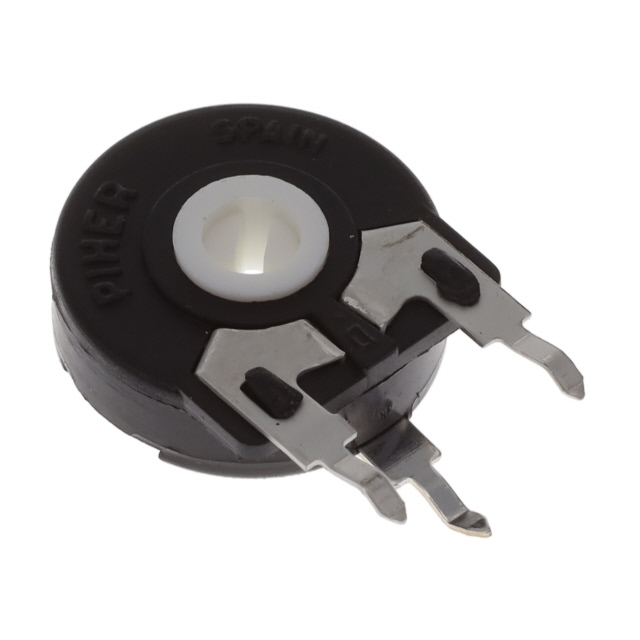

PT15LH06-254A2020-S

Active

Amphenol Piher Sensing Systems

TRIMMER 250K OHM 0.25W PC PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PT15LH06-254A2020-S

Active

Amphenol Piher Sensing Systems

TRIMMER 250K OHM 0.25W PC PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT15LH06-254A2020-S

Adjustment Type	Side Adjustment
Mounting Type	Through Hole
Number of Turns	1
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	250 kOhms
Resistive Material	Carbon
Size / Dimension [diameter]	15 mm
Size / Dimension [diameter]	0.591 in
Temperature Coefficient	300 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

PT15LH06 Series

Part	Temperature Coefficient	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Resistive Material	Power (Watts)	Power (Watts)	Number of Turns	Resistance	Tolerance	Adjustment Type	Termination Style
Amphenol Piher Sensing Systems PT15LH06-501A2020-S	300 ppm/°C	15 mm	0.591 in	Through Hole	Carbon	0.25 W	250 mW	1	500 Ohms	20 %	Side Adjustment	PC Pins
Amphenol Piher Sensing Systems PT15LH06-253A2020-S	300 ppm/°C	15 mm	0.591 in	Through Hole	Carbon	0.25 W	250 mW	1	25 kOhms	20 %	Side Adjustment	PC Pins
Amphenol Piher Sensing Systems PT15LH06-504A2020-S	300 ppm/°C	15 mm	0.591 in	Through Hole	Carbon	0.25 W	250 mW	1		20 %	Side Adjustment	PC Pins
Amphenol Piher Sensing Systems PT15LH06-205A3030-S	300 ppm/°C	15 mm	0.591 in	Through Hole	Carbon	0.25 W	250 mW	1	2 MOhms	30 %	Side Adjustment	PC Pins
Amphenol Piher Sensing Systems PT15LH06-102A2020-S	300 ppm/°C	15 mm	0.591 in	Through Hole	Carbon	0.25 W	250 mW	1	1000 Ohms	20 %	Side Adjustment	PC Pins
Amphenol Piher Sensing Systems PT15LH06-252A2020-S	300 ppm/°C	15 mm	0.591 in	Through Hole	Carbon	0.25 W	250 mW	1	2.5 kOhms	20 %	Side Adjustment	PC Pins
Amphenol Piher Sensing Systems PT15LH06-502A2020-S	300 ppm/°C	15 mm	0.591 in	Through Hole	Carbon	0.25 W	250 mW	1	5 kOhms	20 %	Side Adjustment	PC Pins
Amphenol Piher Sensing Systems PT15LH06-254A2020-S	300 ppm/°C	15 mm	0.591 in	Through Hole	Carbon	0.25 W	250 mW	1	250 kOhms	20 %	Side Adjustment	PC Pins
Amphenol Piher Sensing Systems PT15LH06-203A2020-S	300 ppm/°C	15 mm	0.591 in	Through Hole	Carbon	0.25 W	250 mW	1	20 kOhms	20 %	Side Adjustment	PC Pins
Amphenol Piher Sensing Systems PT15LH06-105A2020-S	300 ppm/°C	15 mm	0.591 in	Through Hole	Carbon	0.25 W	250 mW	1	1 MOhms	20 %	Side Adjustment	PC Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.68
		10	$ 0.55
		25	$ 0.50
		50	$ 0.47
		100	$ 0.44
		250	$ 0.40
		500	$ 0.38
		1000	$ 0.35
		5000	$ 0.31

Description

General part information

PT15LH06 Series

250 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
