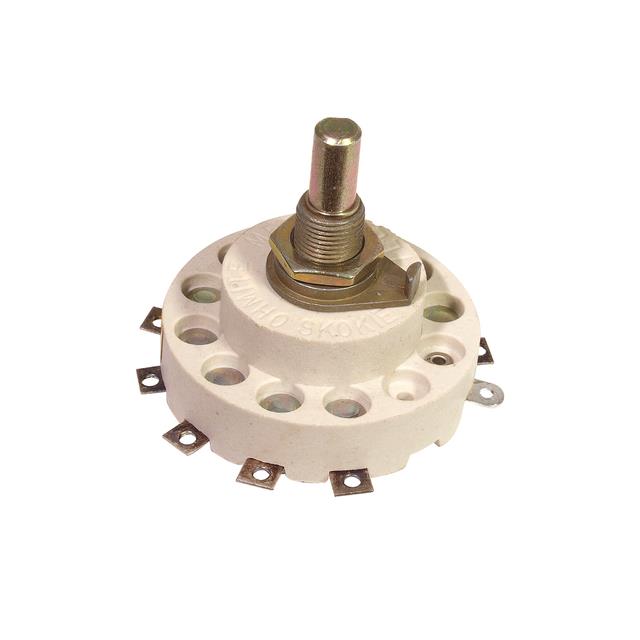

111-5T2E

Active

Ohmite

SWITCH ROTARY 5POS 15A 125V

Search across all available documentation for this part.

Active

Ohmite

SWITCH ROTARY 5POS 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	111-5T2E

Actuator Length [x]	0.5 in
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	SP5T
Contact Material	Silver Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	15 A
Depth Behind Panel [z]	69.9 mm
Index Stops	Fixed
Number of Decks	2
Number of Poles per Deck	1
Panel Cutout Dimensions [diameter]	9.53 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	20 V

Part	Angle of Throw	Number of Decks	Contact Material	Termination Style	Depth Behind Panel [z]	Index Stops	Contact Timing	Voltage Rating - DC	Voltage Rating - AC	Actuator Type [diameter]	Actuator Type	Circuit per Deck	Number of Poles per Deck	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Current Rating (Amps)
Ohmite 111-5T2E	30 °	2	Silver Alloy	Solder Lug	69.9 mm	Fixed	Non-Shorting	20 V	125 V	6.35 mm	Flatted	SP5T	1	9.53 mm	0.5 in	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 207.45

General part information

Rotary Switch 5 Position SP5T 15A (AC/DC) 125 VAC Panel Mount

Technical documentation and resources

No documents available
