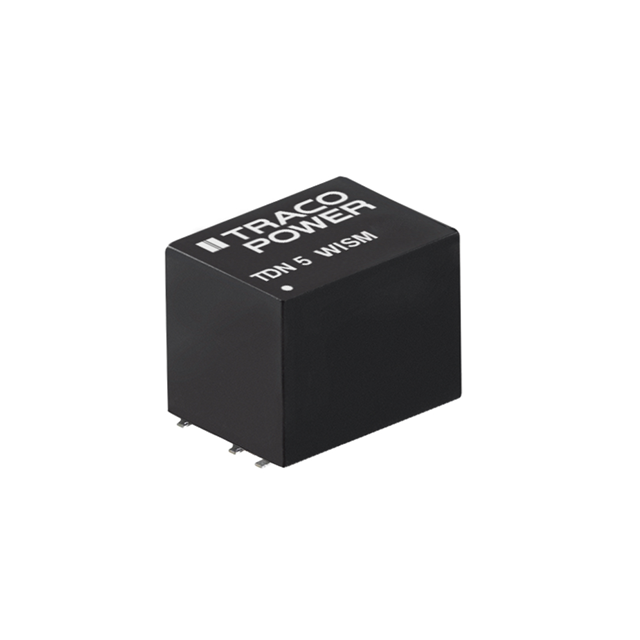

TDN 5-4811WISM

Active

Traco Power

MODULE DC-DC 48VIN 1-OUT 5V 1A 5W 6-PIN DIP SMD MODULE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TDN 5-4811WISM

Active

Traco Power

MODULE DC-DC 48VIN 1-OUT 5V 1A 5W 6-PIN DIP SMD MODULE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TDN 5-4811WISM

Applications	ITE (Commercial)
Approval Agency	UL
Current - Output (Max) [Max]	1 A
Efficiency	81 %
Features	Remote On/Off, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	7-SMD Module, 6 Leads
Power (Watts)	5 W
Size / Dimension [x]	13.2 mm
Size / Dimension [x]	0.52 in
Size / Dimension [y]	9.1 mm
Size / Dimension [y]	0.36 "
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Standard Number	60950-1, 62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	5 V

TDN 5 Series

Part	Mounting Type	Applications	Package / Case	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Type	Current - Output (Max)	Current - Output (Max)	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Features	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Approval Agency	Current - Output (Max)	Standard Number	Current - Output (Max) [Max]
Traco Power TDN 5-2422WI	Through Hole	ITE (Commercial)	7-DIP Module 6 Leads	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1.6 kV	Isolated Module	210 mA	210 mA	2	83 %	9 V	5 W	36 V	Remote On/Off SCP	12 V	-40 °C	75 ¯C	-12 V
Traco Power TDN 5-4821WISM	Surface Mount	ITE (Commercial)	7-SMD Module 6 Leads	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1.6 kV	Isolated Module	500 mA		2	80 %	18 V	5 W	75 V	Remote On/Off SCP	5 V	-40 °C	75 ¯C	-5 V	UL	500 mA	60950-1 62368-1
Traco Power TDN 5-0921WI	Through Hole	ITE (Commercial)	7-DIP Module 6 Leads	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1.6 kV	Isolated Module	500 mA		2	80 %	4.5 V	5 W	13.2 V	Remote On/Off SCP	5 V	-40 °C	75 ¯C	-5 V		500 mA
Traco Power TDN 5-4822WISM	Surface Mount	ITE (Commercial)	7-SMD Module 6 Leads	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1.6 kV	Isolated Module	210 mA	210 mA	2	83 %	18 V	5 W	75 V	Remote On/Off SCP	12 V	-40 °C	75 ¯C	-12 V	UL		60950-1 62368-1
Traco Power TDN 5-4811WISM	Surface Mount	ITE (Commercial)	7-SMD Module 6 Leads	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1.6 kV	Isolated Module			1	81 %	18 V	5 W	75 V	Remote On/Off SCP	5 V	-40 °C	75 ¯C		UL		60950-1 62368-1	1 A
Traco Power TDN 5-0922WI	Through Hole	ITE (Commercial)	7-DIP Module 6 Leads	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1.6 kV	Isolated Module	210 mA	210 mA	2	83 %	4.5 V	5 W	13.2 V	Remote On/Off SCP	12 V	-40 °C	75 ¯C	-12 V
Traco Power TDN 5-4822WI	Through Hole	ITE (Commercial)	7-DIP Module 6 Leads	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1.6 kV	Isolated Module	210 mA	210 mA	2	83 %	18 V	5 W	75 V	Remote On/Off SCP	12 V	-40 °C	75 ¯C	-12 V
Traco Power TDN 5-2412WI	Through Hole	ITE (Commercial)	7-DIP Module 6 Leads	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1.6 kV	Isolated Module			1	83 %	9 V	5 W	36 V	Remote On/Off SCP	12 V	-40 °C	75 ¯C					420 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 29.70
		5	$ 27.60
Digikey	Tube	1	$ 29.70
		10	$ 27.04
		25	$ 26.15
		50	$ 25.49
		100	$ 24.85
		250	$ 24.03
		500	$ 21.26

Description

General part information

TDN 5 Series

Isolated Module DC DC Converter 1 Output 5V 1A 18V - 75V Input
