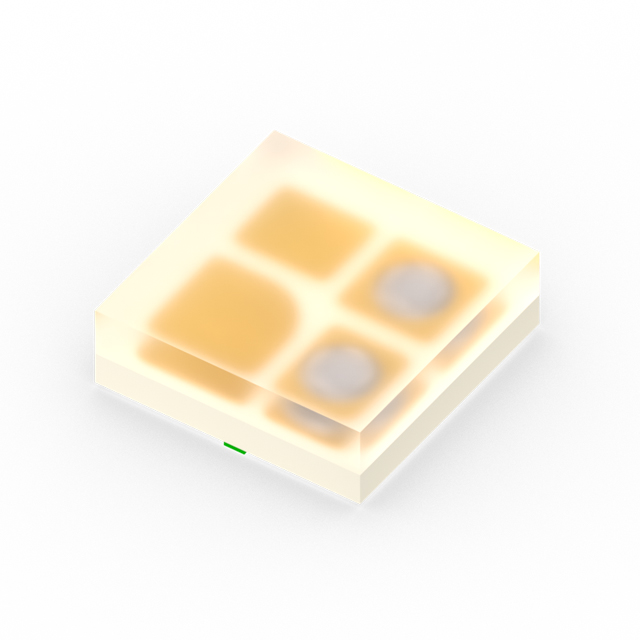

APGF0606SEEKCGKXC-TT
ActiveKingbright
LED GREEN/RED CLEAR 4SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APGF0606SEEKCGKXC-TT
ActiveKingbright
LED GREEN/RED CLEAR 4SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APGF0606SEEKCGKXC-TT |
|---|---|
| Color | Red, Green |
| Configuration | Common Anode |
| Current - Test | 5mA Green, 5mA Red |
| Height (Max) [Max] | 0.25 mm |
| Lens Color | Colorless |
| Lens Size | 0.65 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 80 mcd, 8 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.65 mm |
| Size / Dimension [y] | 0.65 mm |
| Supplier Device Package | 4-SMD |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 1.95 V, 1.92 V |
| Wavelength - Dominant | 571 nm, 624 nm |
| Wavelength - Peak | 572 nm, 632 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.93 | |
| 10 | $ 0.61 | |||
| 100 | $ 0.40 | |||
| 1000 | $ 0.32 | |||
| 2000 | $ 0.29 | |||
| Digi-Reel® | 1 | $ 0.93 | ||
| 10 | $ 0.61 | |||
| 100 | $ 0.40 | |||
| 1000 | $ 0.32 | |||
| 2000 | $ 0.29 | |||
| Tape & Reel (TR) | 4000 | $ 0.29 | ||
| 8000 | $ 0.28 | |||
| 12000 | $ 0.28 | |||
| 28000 | $ 0.27 | |||
Description
General part information
APGF0606S Series
Green, Red 571nm Green, 624nm Red LED Indication - Discrete 1.92V Green, 1.95V Red 4-SMD, No Lead
