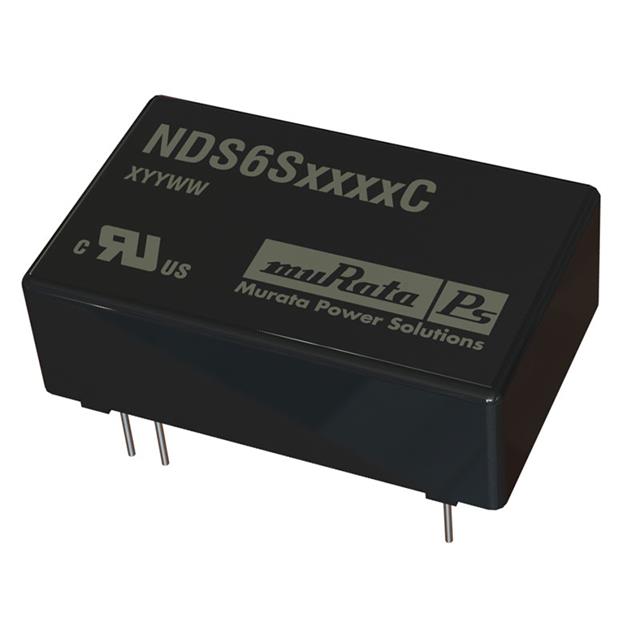

NDS6S2405C

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 6 W, 1 OUTPUT, 5 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 6 W, 1 OUTPUT, 5 V

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Number of Outputs	Applications	Voltage - Isolation	Mounting Type	Package / Case	Efficiency	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Package / Case
Murata Power Solutions Inc. NDS6S2412C	6 W	1	ITE (Commercial)	1.5 kV	Through Hole	24-DIP Module 8 Leads	87 %	500 mA	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	36 V	18 V	Isolated Module	85 °C	-40 °C	12 V
Murata Power Solutions Inc. NDS6S2405C	6 W	1	ITE (Commercial)	1.5 kV	Through Hole	24-DIP Module 8 Leads		1.2 A	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	36 V	18 V	Isolated Module	85 °C	-40 °C	5 V
Murata Power Solutions Inc. NDS6S2405EC	6 W	1	ITE (Commercial)	1.5 kV	Through Hole	24-DIP Module		1.2 A	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	36 V	18 V	Isolated Module	85 °C	-40 °C	5 V	9 PC Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 1.2A 18V - 36V Input
