GFTSAX-3

Active

Curtis Industries

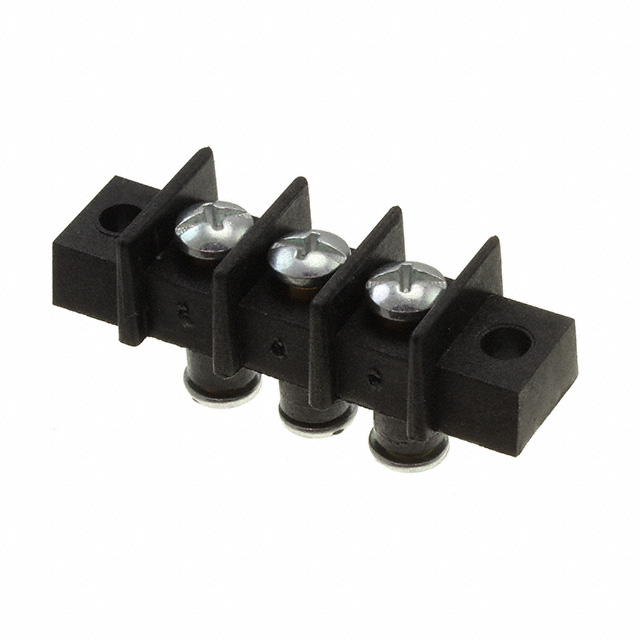

CONN BARRIER STRIP 3CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GFTSAX-3

Active

Curtis Industries

CONN BARRIER STRIP 3CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GFTSAX-3

Barrier Type	2 Wall (Dual)
Bottom Termination	Insulated, Threaded
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	3
Number of Rows	1
Number of Wire Entries	3
Operating Temperature	110 °C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

GFTSAX Series

Part	Number of Rows	Current Rating (Amps)	Material Flammability Rating	Number of Wire Entries	Terminal Block Type	Pitch [x]	Pitch [x]	Barrier Type	Top Termination	Number of Circuits	Color	Material - Insulation	Bottom Termination	Wire Gauge [Min]	Wire Gauge [Max]	Features	Mounting Type	Terminal Screw Material	Operating Temperature	Number of Wire Entries [custom]
Curtis Industries GFTSAX-4	1	20 A	UL94 V-0	4	Barrier Block	11.12 mm	0.438 in	2 Wall (Dual)	Screws	4	Black	Polyphenylene Oxide (PPO)	Insulated Threaded	12 AWG	22 AWG	Flange	Chassis Panel	Steel	110 °C
Curtis Industries GFTSAX-24	1	20 A	UL94 V-0		Barrier Block	11.12 mm	0.438 in	2 Wall (Dual)	Screws	24	Black	Polyphenylene Oxide (PPO)	Insulated Threaded	12 AWG	22 AWG	Flange	Chassis Panel	Steel	110 °C
Curtis Industries GFTSAX-19	1	20 A	UL94 V-0	19	Barrier Block	11.12 mm	0.438 in	2 Wall (Dual)	Screws	19	Black	Polyphenylene Oxide (PPO)	Insulated Threaded	12 AWG	22 AWG	Flange	Chassis Panel	Steel	110 °C
Curtis Industries GFTSAX-7	1	20 A	UL94 V-0	7	Barrier Block	11.12 mm	0.438 in	2 Wall (Dual)	Screws	7	Black	Polyphenylene Oxide (PPO)	Insulated Threaded	12 AWG	22 AWG	Flange	Chassis Panel	Steel	110 °C
Curtis Industries GFTSAX-1	1	20 A	UL94 V-0		Barrier Block			2 Wall (Dual)	Screws	1	Black	Polyphenylene Oxide (PPO)	Insulated Threaded	12 AWG	22 AWG	Flange	Chassis Panel	Steel	110 °C	1
Curtis Industries GFTSAX-5	1	20 A	UL94 V-0	5	Barrier Block	11.12 mm	0.438 in	2 Wall (Dual)	Screws	5	Black	Polyphenylene Oxide (PPO)	Insulated Threaded	12 AWG	22 AWG	Flange	Chassis Panel	Steel	110 °C
Curtis Industries GFTSAX-13	1	20 A	UL94 V-0	13	Barrier Block	11.12 mm	0.438 in	2 Wall (Dual)	Screws	13	Black	Polyphenylene Oxide (PPO)	Insulated Threaded	12 AWG	22 AWG	Flange	Chassis Panel	Steel	110 °C
Curtis Industries GFTSAX-3	1	20 A	UL94 V-0	3	Barrier Block	11.12 mm	0.438 in	2 Wall (Dual)	Screws	3	Black	Polyphenylene Oxide (PPO)	Insulated Threaded	12 AWG	22 AWG	Flange	Chassis Panel	Steel	110 °C
Curtis Industries GFTSAX-10	1	20 A	UL94 V-0	10	Barrier Block	11.12 mm	0.438 in	2 Wall (Dual)	Screws	10	Black	Polyphenylene Oxide (PPO)	Insulated Threaded	12 AWG	22 AWG	Flange	Chassis Panel	Steel	110 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.02
		10	$ 3.83
		25	$ 3.59
		50	$ 3.19
		100	$ 3.12
		250	$ 3.05

Description

General part information

GFTSAX Series

3 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
