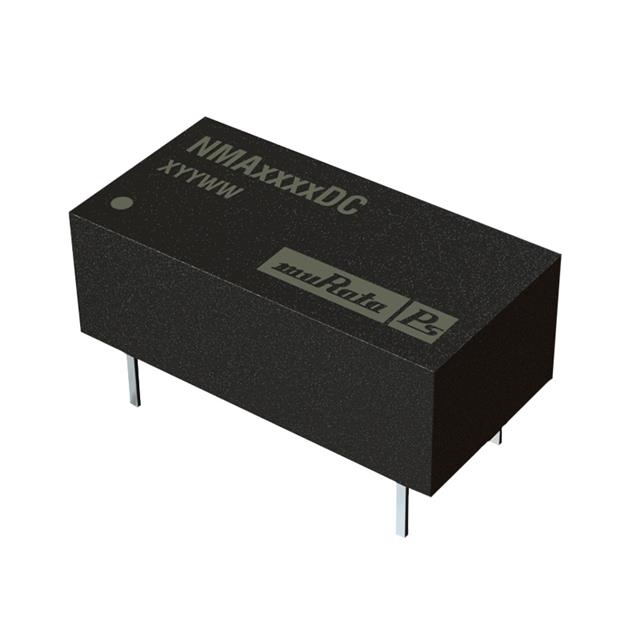

NMA0505DC

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-5V 1W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-5V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Number of Outputs	Voltage - Output 2	Voltage - Isolation	Voltage - Input (Max) [Max]	Type	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Applications	Voltage - Output 1	Current - Output (Max)	Current - Output (Max)
Murata Power Solutions Inc. NMA0512SC	0.39 in	0.77 in	9.9 mm	6.1 mm	19.6 mm	0.24 "	85 °C	-40 °C	77 %	2	-12 V	1000 V	5.5 V	Isolated Module	4.5 V	7-SIP Module 5 Leads	Through Hole	42 mA	42 mA	ITE (Commercial)	12 V
Murata Power Solutions Inc. NMA0505SC	0.39 in	0.77 in	9.9 mm	6.1 mm	19.6 mm	0.24 "	85 °C	-40 °C	69 %	2	-5 V	1000 V	5.5 V	Isolated Module	4.5 V	7-SIP Module 5 Leads	Through Hole			ITE (Commercial)	5 V	100 mA	100 mA
Murata Power Solutions Inc. NMA0515SC	0.39 in	0.77 in	9.9 mm	6.1 mm	19.6 mm	0.24 "	85 °C	-40 °C	78 %	2	-15 V	1000 V	5.5 V	Isolated Module	4.5 V	7-SIP Module 5 Leads	Through Hole			ITE (Commercial)	15 V		33 mA
Murata Power Solutions Inc. NMA0505DC	0.27 " 6.9 mm	0.77 in 19.6 mm				0.39 " 9.9 mm	85 °C	-40 °C	69 %	2	-5 V	1000 V	5.5 V	Isolated Module	4.5 V	14-DIP Module 6 Leads	Through Hole			ITE (Commercial)	5 V	100 mA	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
