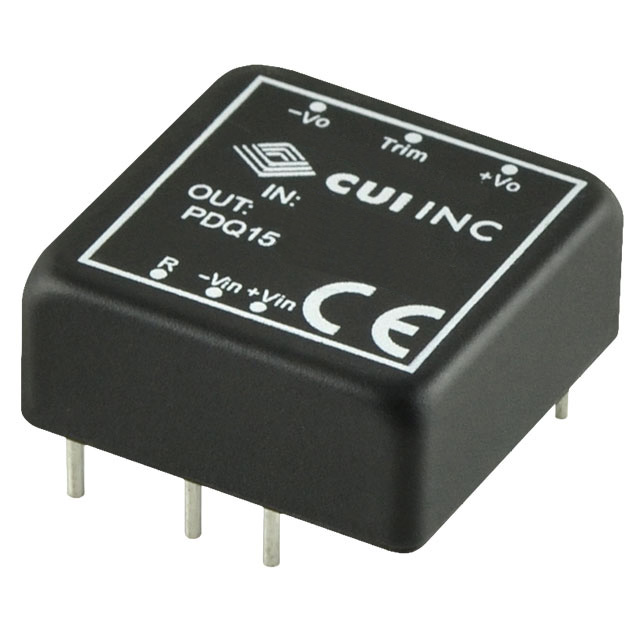

PDQ15-Q24-D5-D

Active

CUI Inc.

DC DC CONVERTER +/-5V 15W

Search across all available documentation for this part.

Active

CUI Inc.

DC DC CONVERTER +/-5V 15W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Power (Watts)	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency	Control Features	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Applications	Voltage - Output 2	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current - Output (Max)	Current - Output (Max)	Mounting Type	Voltage - Output 1	Current - Output (Max)	Current - Output (Max) [Max]
CUI Inc. PDQ15-Q24-D5-D	9 V	15 W	6-DIP Module	2	36 V	85 %	Active High Enable	1.5 kV	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Isolated Module	ITE (Commercial)	-5 V	-40 °C	105 ░C	OCP OVP Remote On/Off SCP UVLO	1.5 A	1.5 A	Through Hole	5 V
CUI Inc. PDQ15-Q48-D15-D	18 V	15 W	6-DIP Module	2	75 V	87 %	Active High Enable	1.5 kV	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Isolated Module	ITE (Commercial)	-15 V	-40 °C	105 ░C	OCP OVP Remote On/Off SCP UVLO	500 mA		Through Hole	15 V	500 mA
CUI Inc. PDQ15-Q24-S15-D	9 V	15 W	6-DIP Module	1	36 V	88 %	Active High Enable	1.5 kV	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	Isolated Module	ITE (Commercial)		-40 °C	105 ░C	OCP OVP Remote On/Off SCP UVLO			Through Hole	15 V		1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 5V -5V 1.5A, 1.5A 9V - 36V Input
