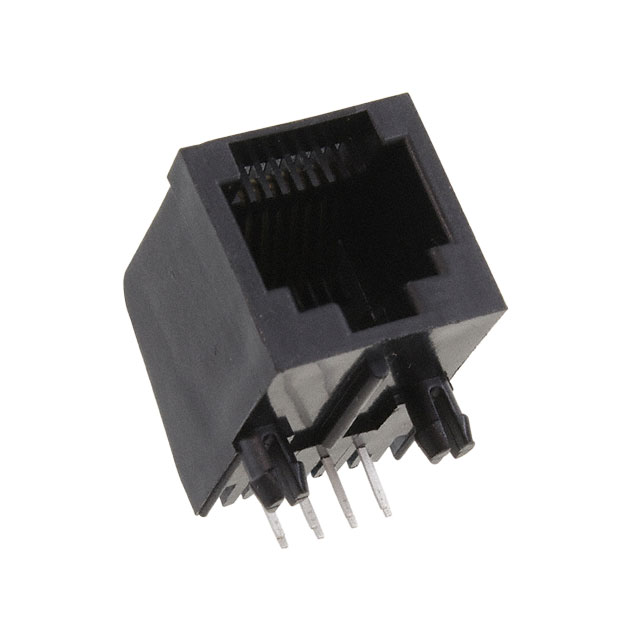

MTJ-641X1

Active

Adam Tech

MODULAR JACK 6P4C

Search across all available documentation for this part.

Active

Adam Tech

MODULAR JACK 6P4C

Technical Specifications

Parameters and characteristics for this part

Specification	MTJ-641X1

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6p4c
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

Part	Termination	Orientation	Housing Material	Contact Finish	Number of Ports	LED Color	Number of Positions/Contacts	Shielding	Features	Tab Direction	Contact Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Number of Rows	Connector Type
Adam Tech MTJ-64WBX1	Solder	90 °	Polyamide (PA) Nylon Glass Filled	Gold	1	Does Not Contain LED	6p4c	Unshielded	Solder Retention	Down	Phosphor Bronze	Surface Mount	125 °C	-40 °C	Flash	1	Jack
Adam Tech MTJ-640X1	Solder	90 °	Polybutylene Terephthalate (PBT)	Gold	1	Does Not Contain LED	6p4c	Unshielded		Down	Phosphor Bronze	Through Hole	85 °C	-40 °C	Flash	1	Jack
Adam Tech MTJ-642BX2	Solder	90 °	Polybutylene Terephthalate (PBT)	Gold	1	Does Not Contain LED	6p4c	Unshielded		Up	Phosphor Bronze	Through Hole	85 °C	-40 °C	Flash	1	Jack
Adam Tech MTJ-641X1	Solder	90 °	Polybutylene Terephthalate (PBT)	Gold	1	Does Not Contain LED	6p4c	Unshielded		Down	Phosphor Bronze	Through Hole	85 °C	-40 °C	Flash	1	Jack
Adam Tech MTJ-645X1	Solder	90 °	Polybutylene Terephthalate (PBT)	Gold	1	Does Not Contain LED	6p4c	Unshielded		Down	Phosphor Bronze	Through Hole	85 °C	-40 °C	Flash	1	Jack
