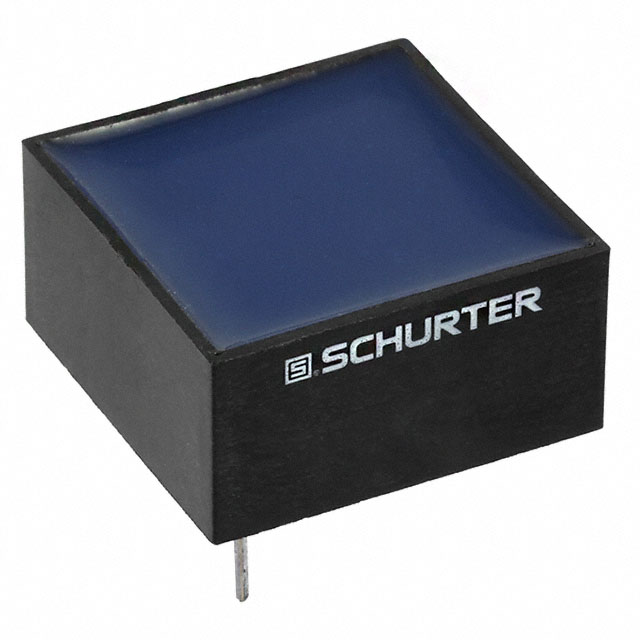

DS1-30-0004
ActiveSCHURTER Inc.
CMC 4A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS1-30-0004
ActiveSCHURTER Inc.
CMC 4A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DS1-30-0004 |
|---|---|
| Current Rating (Max) [Max] | 4 A |
| DC Resistance (DCR) (Max) [Max] | 36 mOhm |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 1.181 in |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [y] | 1.181 in |
| Size / Dimension [y] | 30 mm |
| Voltage Rating - DC | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.58 | |
| 50 | $ 8.10 | |||
| 100 | $ 7.20 | |||
Description
General part information
DS1-30 Series
2 Line Common Mode Choke Through Hole 4A DCR 36mOhm
