CS15120B

Active

CUI Devices

OPEN LOOP CURRENT SENSOR AC CURRENT 12V 6-PIN

Search across all available documentation for this part.

Active

CUI Devices

OPEN LOOP CURRENT SENSOR AC CURRENT 12V 6-PIN

Technical Specifications

Parameters and characteristics for this part

Part	For Measuring	Current - Sensing	Linearity	Polarization	Mounting Type	Frequency	Package / Case	Current - Supply (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Channels	Accuracy	Output	Sensor Type	Operating Temperature [Min]	Operating Temperature [Max]
CUI Devices CS15120B	AC	15 A	0.5 %	Bidirectional	Through Hole	DC ~ 40kHz	Module	25 mA	12.6 V	-11.4 V	1	2.4 %	Ratiometric Voltage	Open Loop	-10 °C	75 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 3.14
Digikey	Tray	50	$ 20.09

General part information

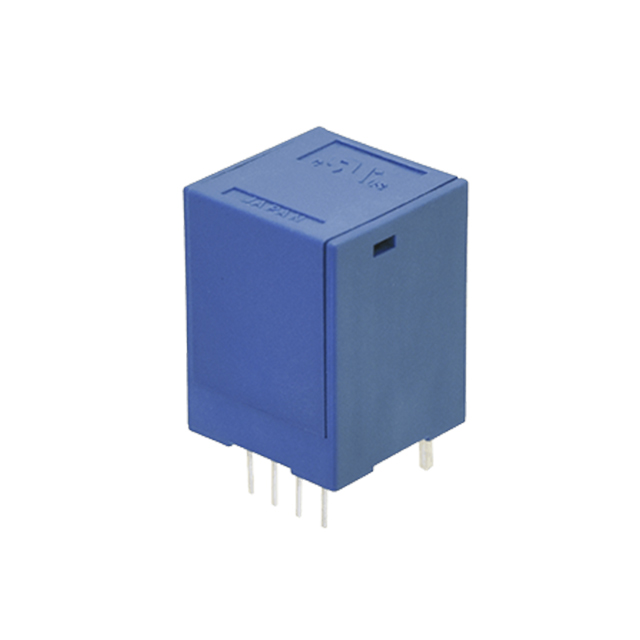

Current Sensor 15A 1 Channel Open Loop Bidirectional Module
