COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 681S SERIES, DA-11W1, PLUG, 11 CONTACTS

Search across all available documentation for this part.

Active

MH Connectors

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 681S SERIES, DA-11W1, PLUG, 11 CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	681S11W1103L001

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	11
Number of Positions [custom]	10
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	11C1, 11W1
Shell Size, Connector Layout	2
Termination	Solder

Part	Material Flammability Rating	Dielectric Material	Termination	Connector Type	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]	Current Rating (Amps)	Shell Material, Finish	Contact Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Style	Contact Type	Contact Finish	Contact Finish Thickness	Number of Rows	Mounting Type	Ingress Protection	Color	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Features
MH Connectors 681S11W1203L001	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	Receptacle Female Sockets	20 Amps	40 A	5 A	Nickel Plated Steel	Copper Alloy	10	1	11	11C1 11W1	2	Combo D-Sub	Signal and Power	Gold	Flash	2	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	Black	Housing/Shell (Unthreaded)	155 °C	-55 °C
MH Connectors 681S11W1103L001	UL94 V-0	Polybutylene Terephthalate (PBT)	Solder	Male Pins Plug			5 A 40 A	Nickel Plated Steel	Copper Alloy	10	1	11	11C1 11W1	2	Combo D-Sub	Signal and Power	Gold	Flash	2	Panel Mount Through Hole	IP67 - Dust Tight Waterproof	Black	Housing/Shell (Unthreaded)	155 °C	-55 °C	Grounding Indents

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

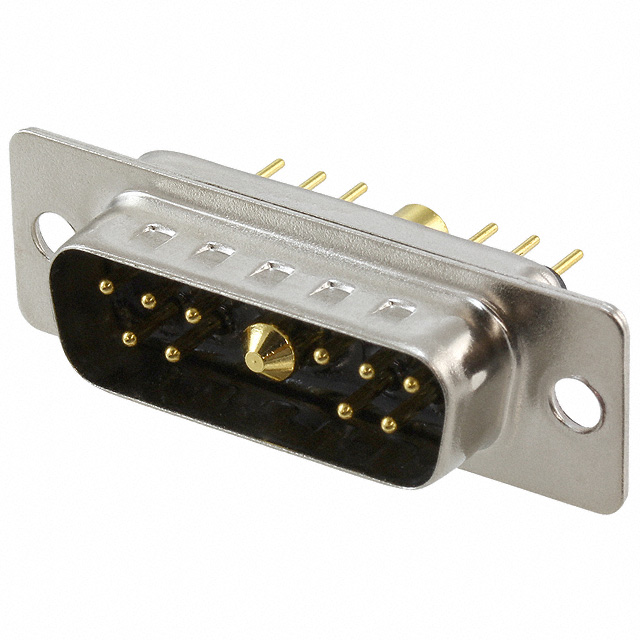

11 (10 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
