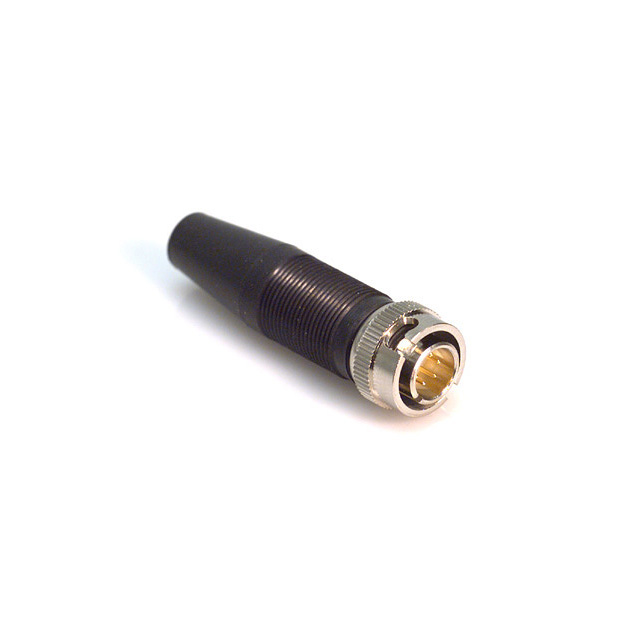

KMC9BPD-6P(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	KMC9BPD-6P(71)

Backshell Material, Plating	Nickel, Brass
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Clamp, Coupling Nut
Ingress Protection	Water Resistant
Insert Material	Polyacetal
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	9
Voltage Rating	100 VAC, 140 VDC

Part	Connector Type	Mounting Type	Voltage Rating	Backshell Material, Plating	Number of Positions	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Contact Finish - Mating	Features	Contact Material	Ingress Protection	Primary Material	Insert Material	Orientation	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Shell Size - Insert
Hirose Electric USA, Inc. KMC9BPD-6P(71)	Male Pins Plug	Free Hanging (In-Line)	100 VAC 140 VDC	Brass Nickel	6	Black Silver	-10 °C	60 °C	Nickel	Gold	Backshell Clamp Coupling Nut Strain Relief	Brass	Water Resistant	Metal	Polyacetal	Keyed	Brass	78.7 µin	2 µm	Bayonet Lock	9
Hirose Electric USA, Inc. KMC9BPD-4P(71)	Male Pins Plug	Free Hanging (In-Line)	100 VAC 140 VDC	Brass Nickel	4	Black Silver	-25 °C	85 °C	Nickel	Gold	Backshell Clamp Coupling Nut Strain Relief	Brass	Water Resistant	Metal	Polyacetal	Keyed	Brass	78.7 µin	2 µm	Bayonet Lock	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Position Circular Connector Plug, Male Pins Solder Cup
