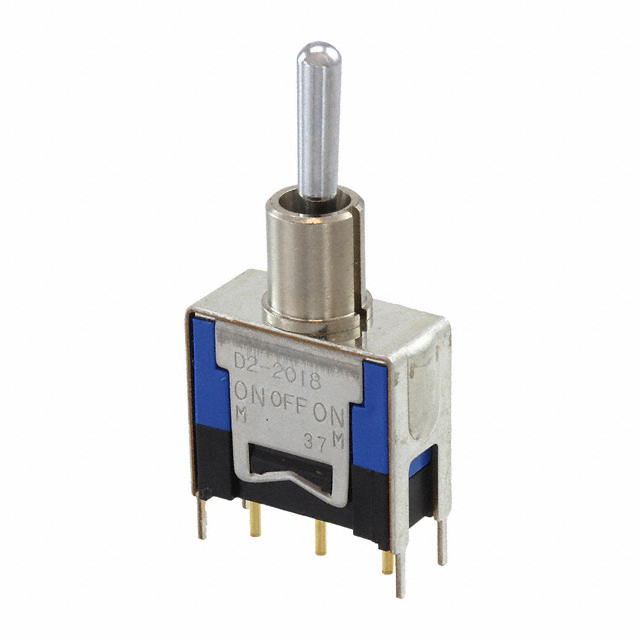

D22018V

Active

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 48V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 48V

Technical Specifications

Parameters and characteristics for this part

Specification	D22018V

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	48 V
Voltage Rating - DC	48 V

Part	Bushing Thread	Mounting Type	Voltage Rating - AC	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Electrical Life	Circuit	Switch Function	Termination Style	Current Rating (Amps)	Actuator Length [x]	Voltage Rating - DC	Illumination	Actuator Material	Actuator Type	Panel Cutout Dimensions [diameter]
NKK Switches D22018LV	Unthreaded	Right Angle Through Hole Vertical	48 V	-10 °C	158 °F	50000 Cycles	SPDT	Mom-Off-Mom	PC Pin	0.4 VA	19.4 mm	48 V	Non-Illuminated	Brass Chrome Plated	Locking Lever
NKK Switches D22018P	M6 x 0.75		48 V	-10 °C	158 °F	50000 Cycles	SPDT	Mom-Off-Mom	PC Pin	0.4 VA		48 V	Non-Illuminated	Brass Chrome Plated	Standard Round	6.5 mm
NKK Switches D22018LP	M6 x 0.75		48 V	-10 °C	158 °F	50000 Cycles	SPDT	Mom-Off-Mom	PC Pin	0.4 VA	19.4 mm	48 V	Non-Illuminated	Brass Chrome Plated	Locking Lever	6.5 mm
NKK Switches D22018V	Unthreaded	Right Angle Through Hole Vertical	48 V	-10 °C	158 °F	50000 Cycles	SPDT	Mom-Off-Mom	PC Pin	0.4 VA		48 V	Non-Illuminated	Brass Chrome Plated	Standard Round
NKK Switches D22018LB	Unthreaded	Through Hole	48 V	-10 °C	158 °F	50000 Cycles	SPDT	Mom-Off-Mom	PC Pin	0.4 VA	19.4 mm	48 V	Non-Illuminated	Brass Chrome Plated	Locking Lever

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole, Right Angle, Vertical
