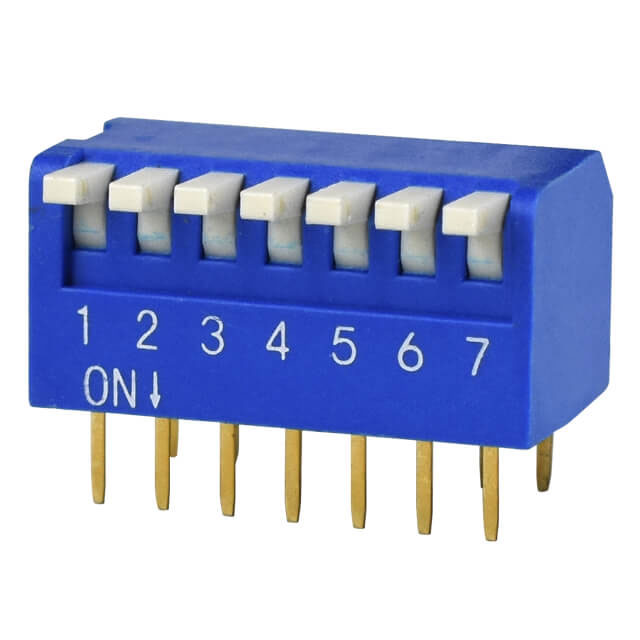

DS02-254-2L-07BE

Obsolete

CUI Devices

SWITCH: DIP-SWITCH; POLES NUMBER: 7; OFF-ON; 0.025A/24VDC; POS: 2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DS02-254-2L-07BE

Obsolete

CUI Devices

SWITCH: DIP-SWITCH; POLES NUMBER: 7; OFF-ON; 0.025A/24VDC; POS: 2

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS02-254-2L-07BE

Actuator Level	Flush, Recessed
Actuator Type	Piano
Body Material	Polybutylene Terephthalate (PBT)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	0.378 in
Height Above Board	9.6 mm
Length [x]	19.35 mm
Length [x]	0.762 "
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

DS02-254 Series

Part	Actuator Level	Mounting Type	Termination Style	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Number of Positions	Actuator Type	Contact Material	Voltage Rating	Current Rating (Amps)	Height Above Board	Height Above Board	Body Material	Electrical Life	Circuit	Length [x]	Length [x]
CUI Devices DS02-254-2L-12BE	Flush Recessed	Through Hole Right Angle	PC Pin	0.1 in	Full	2.54 mm	Gold	85 °C	-40 °C	32.05 mm	1.262 in	12	Piano	Copper Alloy	24 VDC	25 mA	0.378 in	9.6 mm	Polybutylene Terephthalate (PBT)	2000 Steps	SPST
CUI Devices DS02-254-2L-04BE	Flush Recessed	Through Hole Right Angle	PC Pin	0.1 in	Full	2.54 mm	Gold	85 °C	-40 °C	11.73 mm	0.462 in	4	Piano	Copper Alloy	24 VDC	25 mA	0.378 in	9.6 mm	Polybutylene Terephthalate (PBT)	2000 Steps	SPST
CUI Devices DS02-254-1L-05BE	Raised	Through Hole Right Angle	PC Pin	0.1 in	Full	2.54 mm	Gold	85 °C	-40 °C	14.27 mm	0.562 in		Piano	Copper Alloy	24 VDC	25 mA	0.378 in	9.6 mm	Polybutylene Terephthalate (PBT)	2000 Steps	SPST
CUI Devices DS02-254-1L-02BE	Raised	Through Hole Right Angle	PC Pin	0.1 in	Full	2.54 mm	Gold	85 °C	-40 °C	6.65 mm	0.262 "	2	Piano	Copper Alloy	24 VDC	25 mA	0.378 in	9.6 mm	Polybutylene Terephthalate (PBT)	2000 Steps	SPST
CUI Devices DS02-254-2L-02BE	Flush Recessed	Through Hole Right Angle	PC Pin	0.1 in	Full	2.54 mm	Gold	85 °C	-40 °C	6.65 mm	0.262 "	2	Piano	Copper Alloy	24 VDC	25 mA	0.378 in	9.6 mm	Polybutylene Terephthalate (PBT)	2000 Steps	SPST
CUI Devices DS02-254-1L-10BE	Raised	Through Hole Right Angle	PC Pin	0.1 in	Full	2.54 mm	Gold	85 °C	-40 °C			10	Piano	Copper Alloy	24 VDC	25 mA	0.378 in	9.6 mm	Polybutylene Terephthalate (PBT)	2000 Steps	SPST	26.97 mm	1.062 in
CUI Devices DS02-254-1L-03BE	Raised	Through Hole Right Angle	PC Pin	0.1 in	Full	2.54 mm	Gold	85 °C	-40 °C				Piano	Copper Alloy	24 VDC	25 mA	0.378 in	9.6 mm	Polybutylene Terephthalate (PBT)	2000 Steps	SPST	9.19 mm	0.362 in
CUI Devices DS02-254-2L-07BE	Flush Recessed	Through Hole Right Angle	PC Pin	0.1 in	Full	2.54 mm	Gold	85 °C	-40 °C			7	Piano	Copper Alloy	24 VDC	25 mA	0.378 in	9.6 mm	Polybutylene Terephthalate (PBT)	2000 Steps	SPST	19.35 mm	0.762 "
CUI Devices DS02-254-1L-12BE	Raised	Through Hole Right Angle	PC Pin	0.1 in	Full	2.54 mm	Gold	85 °C	-40 °C	32.05 mm	1.262 in	12	Piano	Copper Alloy	24 VDC	25 mA	0.378 in	9.6 mm	Polybutylene Terephthalate (PBT)	2000 Steps	SPST
CUI Devices DS02-254-2L-06BE	Flush Recessed	Through Hole Right Angle	PC Pin	0.1 in	Full	2.54 mm	Gold	85 °C	-40 °C	16.81 mm	0.662 in	6	Piano	Copper Alloy	24 VDC	25 mA	0.378 in	9.6 mm	Polybutylene Terephthalate (PBT)	2000 Steps	SPST

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DS02-254 Series

Dip Switch SPST 7 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
