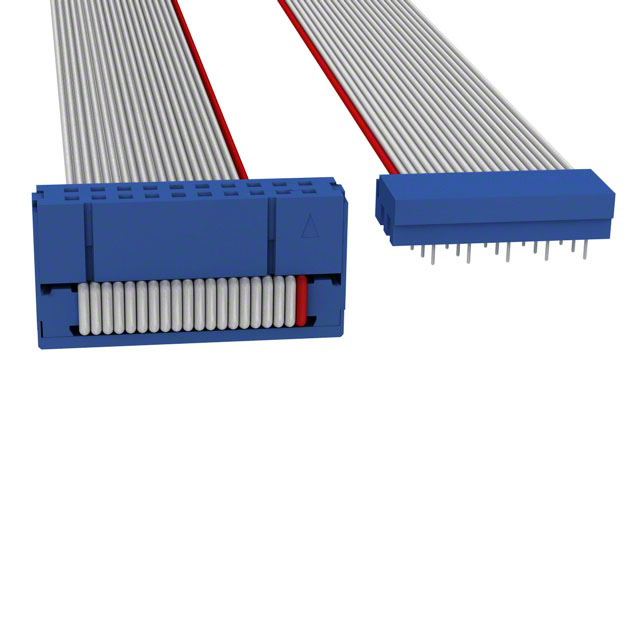

C3BPS-2036G

Active

CW Industries

IDC CABLE - CSR20S/AE20G/CPC20S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSR20S/AE20G/CPC20S

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Shielding	Contact Finish	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Connector Type	Number of Positions	Cable Termination	Usage	Features	Pitch - Cable	Pitch - Cable	Color
CW Industries C3BPS-2636G	2.54 µm	100 µin	Unshielded	Tin	3 ft	914.4 mm	0.1 in	2.54 mm	Socket to PCB	26	IDC	Board In	Strain Relief	0.05 "	1.27 mm
CW Industries C3BPS-2618M	2.54 µm	100 µin	Unshielded	Tin	1.5 ft	457.2 mm	0.1 in	2.54 mm	Socket to PCB	26	IDC	Board In	Strain Relief	0.05 "	1.27 mm	Multiple Ribbon
CW Industries C3BPS-2036G	2.54 µm	100 µin	Unshielded	Tin	3 ft	914.4 mm	0.1 in	2.54 mm	Socket to PCB	20	IDC	Board In	Strain Relief	0.05 "	1.27 mm
CW Industries C3BPS-2636M	2.54 µm	100 µin	Unshielded	Tin	3 ft	914.4 mm	0.1 in	2.54 mm	Socket to PCB	26	IDC	Board In	Strain Relief	0.05 "	1.27 mm	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Cable Assembly Rectangular Socket to PCB 3.00' (914.40mm)

Technical documentation and resources
