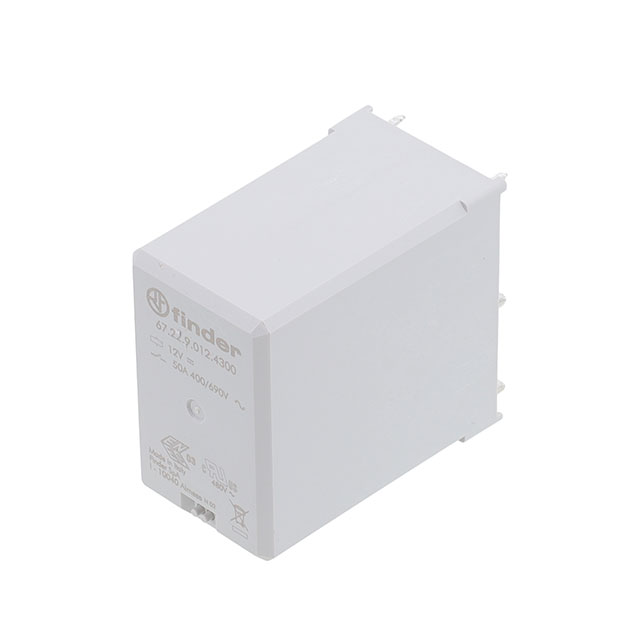

67.22.9.012.4300
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE DPST 50A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 67.22.9.012.4300 |
|---|---|
| Coil Current | 141 mA |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 50 A |
| Load - Max Switching | 34500 VA |
| Mounting Type | Through Hole |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 25 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage | 690 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 45.41 | |
| 10 | $ 43.14 | |||
| 30 | $ 40.87 | |||
| 50 | $ 38.60 | |||
| 100 | $ 36.33 | |||
| 250 | $ 34.06 | |||
Description
General part information
67.22.9 Series
General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Through Hole
