PE42422MLAA-Z
ActivepSemi Corporation
IC RF SWITCH SPDT 6GHZ 12QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE42422MLAA-Z
ActivepSemi Corporation
IC RF SWITCH SPDT 6GHZ 12QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE42422MLAA-Z |
|---|---|
| Circuit | SPDT |
| IIP3 | 70 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.9 dB |
| Isolation | 17 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

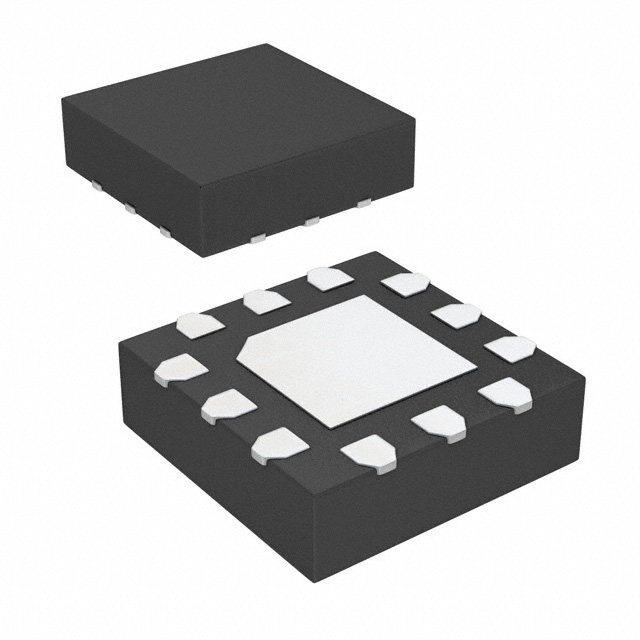

| Package / Case | 12-UFQFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 12-QFN (2x2) |
| Test Frequency | 6 GHz |
| Topology | Reflective |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.61 | |
| 101 | $ 1.12 | |||
| 1000 | $ 0.76 | |||
| Digi-Reel® | 1 | $ 1.61 | ||
| 101 | $ 1.12 | |||
| 1000 | $ 0.76 | |||
| Tape & Reel (TR) | 3000 | $ 0.76 | ||
| 6000 | $ 0.64 | |||
Description
General part information
PE42422 Series
RF Switch IC General Purpose SPDT 6 GHz 50Ohm 12-QFN (2x2)
