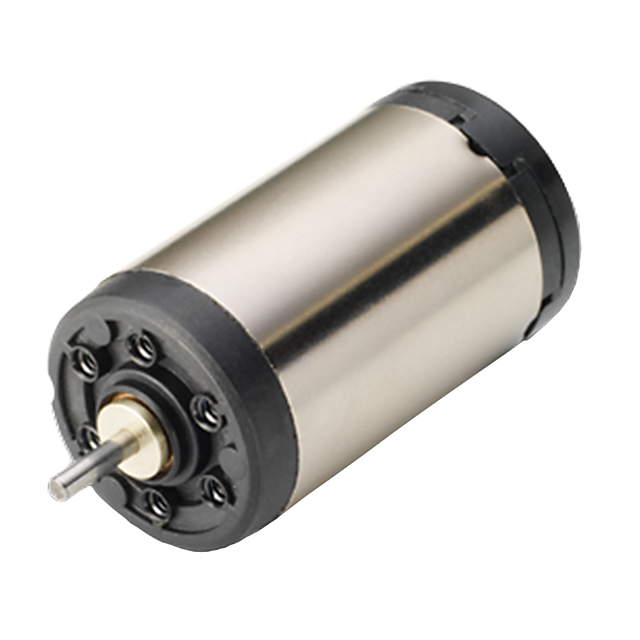

16G88-211E.1
ActivePortescap
STANDARD MOTOR 9700 RPM 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
16G88-211E.1
ActivePortescap
STANDARD MOTOR 9700 RPM 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 16G88-211E.1 |
|---|---|
| Diameter - Shaft [diameter] | 0.059 in |
| Diameter - Shaft [diameter] | 1.5 mm |
| Function | Standard |
| Length - Shaft and Bearing | 7.5 mm |
| Length - Shaft and Bearing [x] | 0.295 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 10 mm |
| Mounting Hole Spacing | 0.394 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 4.5 W |
| RPM | 9700 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 16 mm |
| Size / Dimension [diameter] | 0.629 " |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 0.665 oz-in |
| Torque - Rated (oz-in / mNm) | 4.7 mNm |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
| Weight | 24.04 g |
| Weight | 0.053 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 55.30 | |
Description
General part information
16G88 Series
Brushed DC Motor Standard 9700 RPM 4.5W 12VDC
