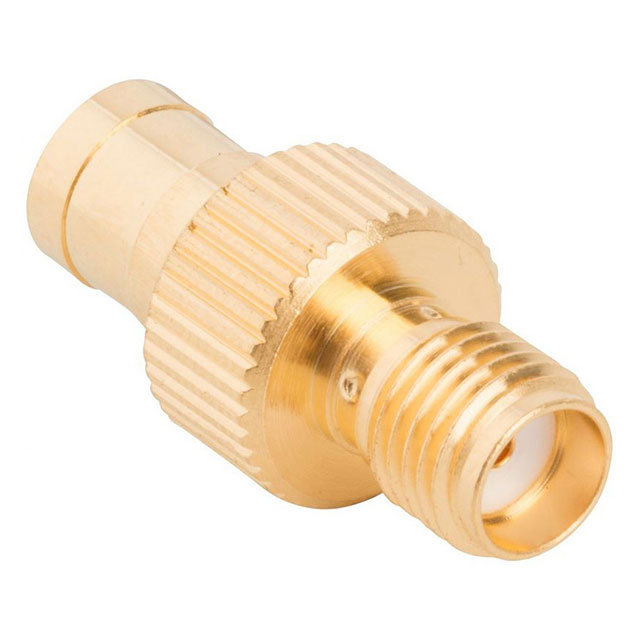

242145RP

Active

Amphenol RF

CONN ADAPT SMA JACK-RP-SMB PLUG

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT SMA JACK-RP-SMB PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	242145RP

Adapter Series	SMA to RP-SMB
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Male Pin, RP-SMB Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Mounting Type	Convert From (Adapter End)	Dielectric Material	Adapter Type	Center Contact Plating	Body Material	Conversion Type	Adapter Series	Impedance	Style	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Fastening Type	Frequency - Max [Max]	Body Finish	Convert To (Adapter End)	Mating Cycles
Amphenol RF 242145RP	Free Hanging (In-Line)	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)	Plug to Jack	Gold	Brass	Between Series	SMA to RP-SMB	50 Ohms	Straight	-65 ░C	165 °C	Beryllium Copper	Snap-On Threaded	4 GHz	Gold	Male Pin RP-SMB Plug	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To RP-SMB Plug, Male Pin 50 Ohms
