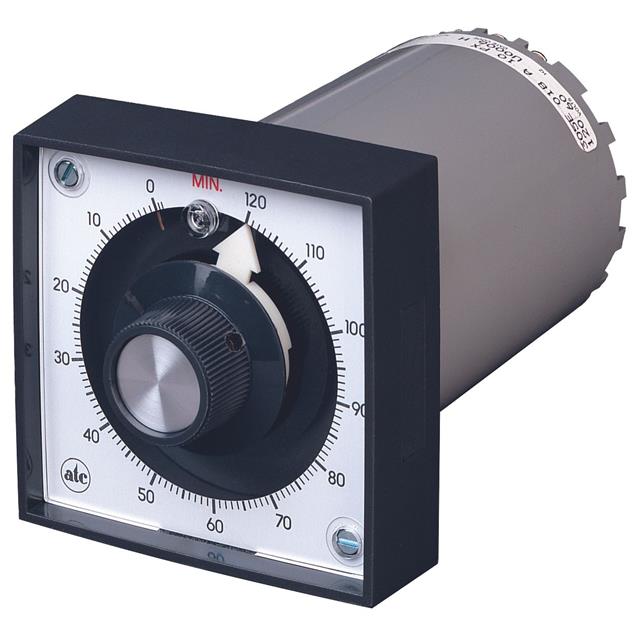

305E-030-A-1-0-P-X
ActiveATC-Diversified Electronics
RELAY TIME DELAY 6HR 10A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
305E-030-A-1-0-P-X
ActiveATC-Diversified Electronics
RELAY TIME DELAY 6HR 10A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 305E-030-A-1-0-P-X |
|---|---|
| Contact Rating @ Voltage [x] | 10 A, 120 VAC |
| Delay Time | Fixed |
| Delay Time | 6 Hrs |
| Function | On-Delay |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
305E-030 Series
On-Delay Time Delay Relay SPDT (1 Form C) Fixed, 6 Hrs Delay 10A @ 120VAC Socketable
