PWR1546AC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-15V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

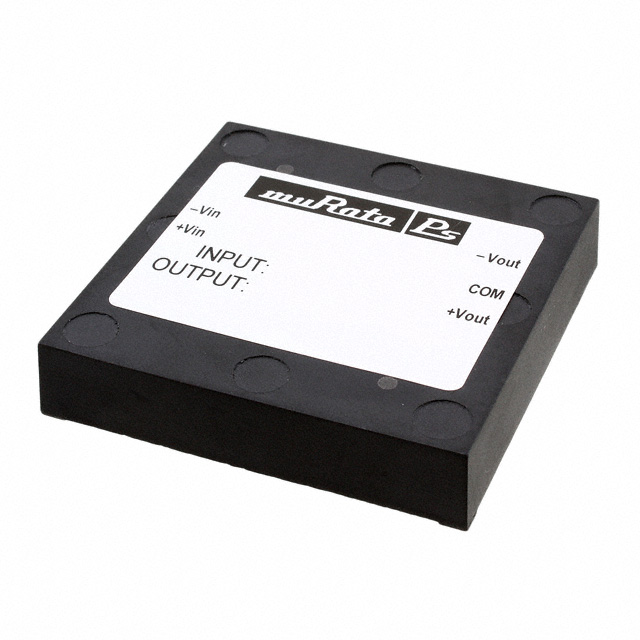

PWR1546AC
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-15V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PWR1546AC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 167 mA |
| Current - Output (Max) | 167 mA |
| Efficiency | 60 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 750 V |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 105.06 | |
| 25 | $ 101.89 | |||
| 50 | $ 88.80 | |||
| 100 | $ 85.01 | |||
Description
General part information
PWR15 Series
Isolated Module DC DC Converter 2 Output 15V -15V 167mA, 167mA 4.5V - 5.5V Input
