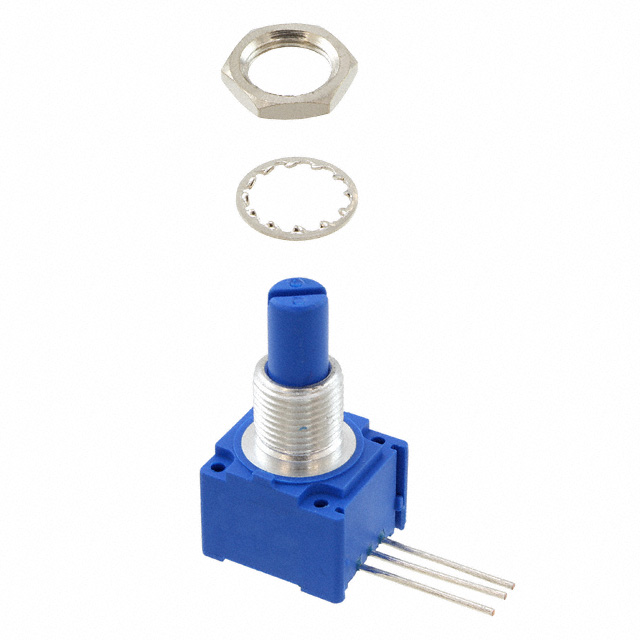

96A1A-B24-B15L

Active

Bourns Inc.

PANEL CONTROL - 5/8" (16MM) ST-CP /TRAY PACKAGING ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

PANEL CONTROL - 5/8" (16MM) ST-CP /TRAY PACKAGING ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Features	Number of Turns	Taper	Temperature Coefficient	Bushing Thread	Number of Gangs	Tolerance	Power (Watts)	Actuator Type	Termination Style	Rotation	Adjustment Type	Resistance (Ohms)	Actuator Length [z]	Actuator Length [z]	Resistive Material	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Actuator Diameter	Actuator Diameter [diameter]	Resistance (Ohms)
Bourns Inc. 96A1A-B28-B20L	Sealed	1	Linear	1000 ppm/°C	3/8-32	1	20 %	1 W	Slotted	PC Pins	300 ░	Side Adjustment	100 kOhms	22.23 mm	0.875 in	Conductive Plastic	0.687 in	0.625 in	17.45 mm	15.88 mm	6.35 mm	0.25 in
Bourns Inc. 96A1A-B24-B15L	Sealed	1	Linear	1000 ppm/°C	3/8-32	1	20 %	1 W	Slotted	PC Pins	300 ░	Side Adjustment		19.05 mm	0.75 in	Conductive Plastic	0.687 in	0.625 in	17.45 mm	15.88 mm	6.35 mm	0.25 in	10k
Bourns Inc. 96A1A-H24-B15L	Sealed	1	Linear	1000 ppm/°C	3/8-32	1	20 %	1 W	Flatted	PC Pins	300 ░	Side Adjustment		19.05 mm	0.75 in	Conductive Plastic	0.687 in	0.625 in	17.45 mm	15.88 mm	6.35 mm	0.25 in	10k
Bourns Inc. 96A1A-B28-A20L	Sealed	1	Linear	150 ppm/°C	3/8-32	1	10 %	2 W	Slotted	PC Pins	300 ░	Side Adjustment	100 kOhms	22.23 mm	0.875 in	Cermet	0.687 in	0.625 in	17.45 mm	15.88 mm	6.35 mm	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	270	$ 8.71
Newark	Each	250	$ 7.85
		500	$ 7.29

General part information

10k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Conductive Plastic 1W PC Pins
