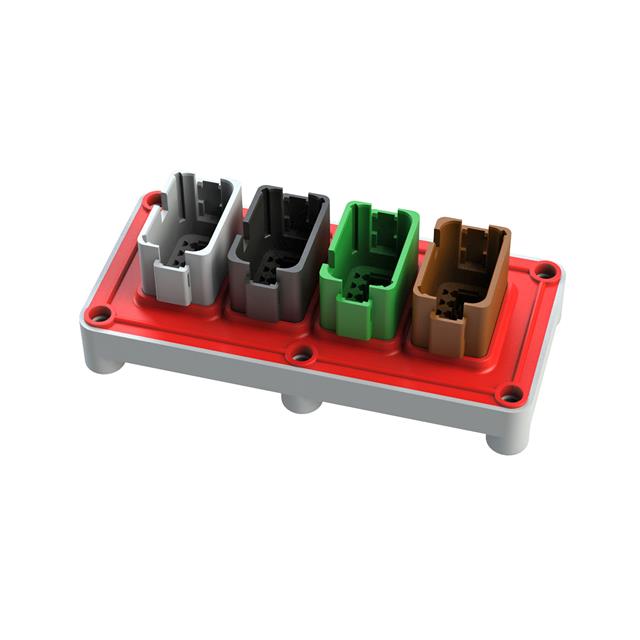

AT04-48P-B016
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG 48POS PANEL MNT
Deep-Dive with AI
Search across all available documentation for this part.
AT04-48P-B016
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG 48POS PANEL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AT04-48P-B016 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Mounting Flange, IP67, Sealed |
| Insulation Material | Thermoplastic |
| Note | Contacts Not Included |
| Number of Positions | 48 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.75 | |
| 10 | $ 28.68 | |||
| 30 | $ 26.54 | |||
| 60 | $ 25.28 | |||
| 120 | $ 24.07 | |||
| 270 | $ 22.74 | |||
Description
General part information
AT04-48P Series
48 Rectangular Connectors - Housings Receptacle Gray
