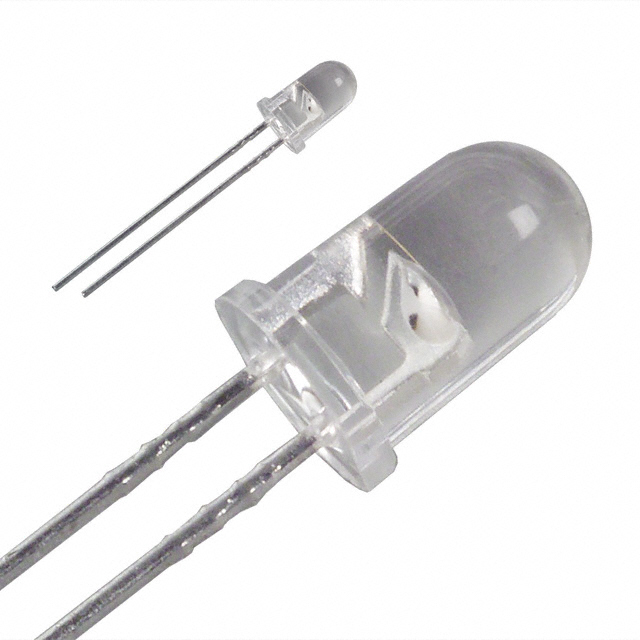

SIR-568ST3F
NRNDRohm Semiconductor
EMITTER IR 850NM 100MA T 1 3/4
Deep-Dive with AI
Search across all available documentation for this part.
SIR-568ST3F
NRNDRohm Semiconductor
EMITTER IR 850NM 100MA T 1 3/4
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIR-568ST3F |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Top View |
| Package / Case | T 1 3/4 |
| Radiant Intensity (Ie) Min @ If | 18 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle [custom] | 26 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.67 | |
| 10 | $ 1.78 | |||
| 100 | $ 1.37 | |||
| 500 | $ 1.24 | |||
| 1000 | $ 1.06 | |||
| 2000 | $ 1.01 | |||
| 5000 | $ 0.98 | |||
| 10000 | $ 0.97 | |||
Description
General part information
SIR-568 Series
Infrared (IR) Emitter 850nm 1.6V 100mA 18mW/sr @ 50mA 26° T 1 3/4
Documents
Technical documentation and resources
No documents available
