T1014NXN7MQA

Active

Freescale Semiconductor - NXP

QORIQ, 1XCPU 64-BIT PWR ARCH, 1.2GHZ, DDR3L/4, PCIE, 1/10GBE, HW ACCEL, -40 TO 105C, 23X23 PKG/ TRAY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

QORIQ, 1XCPU 64-BIT PWR ARCH, 1.2GHZ, DDR3L/4, PCIE, 1/10GBE, HW ACCEL, -40 TO 105C, 23X23 PKG/ TRAY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	T1014NXN7MQA

Additional Interfaces	MMC/SD, PCIe, UART, I2C, SPI
Ethernet	GbE
Graphics Acceleration	False
Mounting Type	Surface Mount
Number of Cores/Bus Width [custom]	1
Number of Cores/Bus Width [custom]	64 Bit
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C

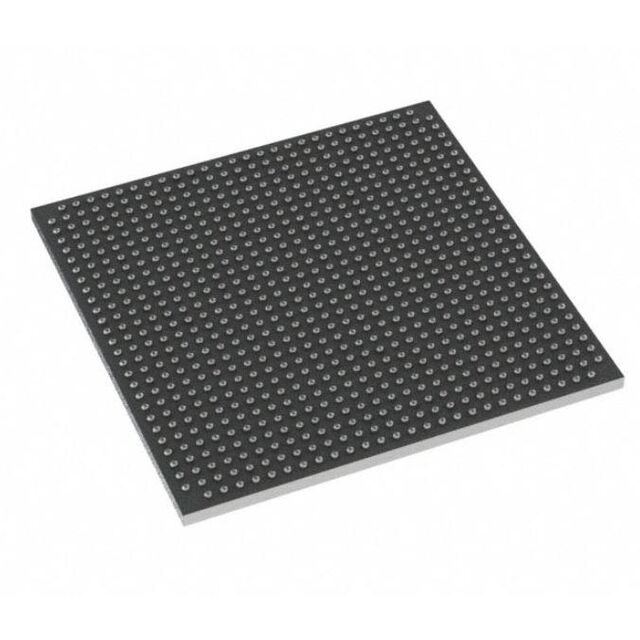

Package / Case	780-FBGA
SATA	SATA 3Gbps (2)
Speed	1.2 GHz
Supplier Device Package	780-FBGA (23x23)
USB	USB 2.0 + PHY (2)

Part	Mounting Type	Supplier Device Package	Ethernet	Additional Interfaces	SATA	USB	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]	Graphics Acceleration	Package / Case	Speed	Operating Temperature [Max]	Operating Temperature [Min]
Freescale Semiconductor - NXP T1014NXN7MQA	Surface Mount	780-FBGA (23x23)	GbE	I2C MMC/SD PCIe SPI UART	SATA 3Gbps (2)	USB 2.0 + PHY (2)	1	64 Bit		780-FBGA	1.2 GHz	105 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	60	$ 91.71
Newark	Each	50	$ 88.29
		100	$ 83.10

General part information

PowerPC e5500 Microprocessor IC QorIQ T1 1 Core, 64-Bit 1.2GHz 780-FBGA (23x23)
