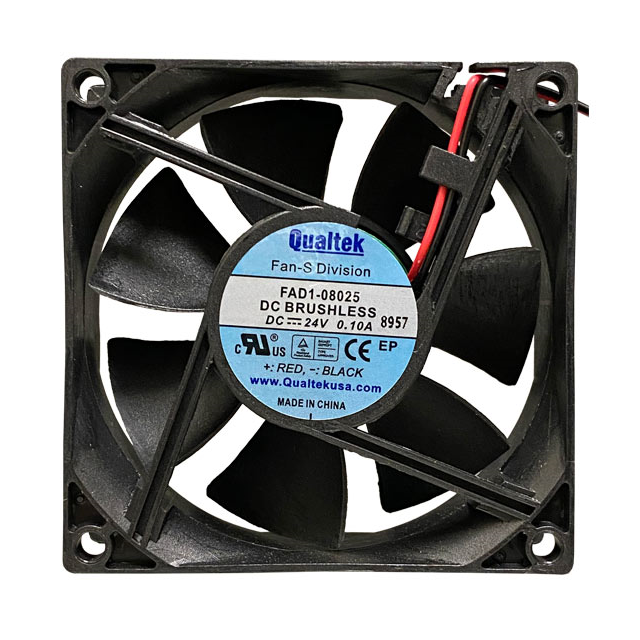

FAD1-08025DBLW11-A

Active

Qualtek

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Axial Fans

FAD1-08025DBLW11-A

Active

Qualtek

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Axial Fans

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FAD1-08025DBLW11-A

Air Flow	24.4 CFM
Air Flow	0.683 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	60 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	23.6 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.44 W
RPM	2000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	17 Pa
Static Pressure	0.068 in H2O
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	21.6 VDC
Weight	72.12 g
Weight	0.159 lb
Width [y]	25 mm

FAD1-08025 Series

Part	Power (Watts)	Weight	Weight	Termination	Current Rating (Amps)	Static Pressure	Static Pressure	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	RPM	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Material - Frame	Approval Agency	Air Flow	Air Flow	Width [y]	Material - Blade	Lifetime @ Temp.
Qualtek FAD1-08025CHHW11-A	2.16 W	72.12 g	0.159 lb	2 Wire Leads	0.18 A	0.157 in H2O	39.1 Pa	80 mm	80 mm	12 VDC	13.2 VDC	10.8 VDC	Hydrodynamic	3000 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	35.8 dB(A)	Plastic	CE cURus TUV	37.2 CFM	1.04 mł/min	25 mm	Plastic	40000 Hrs
Qualtek FAD1-08025CBJW11-A	3 W	72.12 g	0.159 lb	2 Wire Leads	0.25 A	0.204 in H2O	51 Pa	80 mm	80 mm	12 VDC	13.2 VDC	10.8 VDC	Ball	3400 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	40.5 dB(A)	Plastic	CE cURus TUV	43.6 CFM	1.22 m³/min	25 mm	Plastic	70000 Hrs
Qualtek FAD1-08025DHHW11-A	2.4 W	72.12 g	0.159 lb	2 Wire Leads	100 mA	0.157 in H2O	39.1 Pa	80 mm	80 mm	24 VDC	26.4 VDC	21.6 VDC	Hydrodynamic	3000 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	35.8 dB(A)	Plastic	CE cURus TUV	37.2 CFM	1.04 mł/min	25 mm	Plastic	40000 Hrs
Qualtek FAD1-08025DBMW11-A	1.44 W	72.12 g	0.159 lb	2 Wire Leads	60 mA	0.112 in H2O	27.9 Pa	80 mm	80 mm	24 VDC	26.4 VDC	21.6 VDC	Ball	2500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	30 dB(A)	Plastic	CE cURus TUV	30.5 CFM	0.854 m³/min	25 mm	Plastic	70000 Hrs
Qualtek FAD1-08025DBHW12-A	2.4 W	72.12 g	0.159 lb	2 Wire Leads	100 mA	0.157 in H2O	39.1 Pa	80 mm	80 mm	24 VDC	26.4 VDC	21.6 VDC	Ball	3000 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	35.8 dB(A)	Plastic	CE cURus TUV	37.2 CFM	1.04 mł/min	25 mm	Plastic	70000 Hrs
Qualtek FAD1-08025DBJW12-A	3.84 W	72.12 g	0.159 lb	2 Wire Leads		0.216 in H2O	53.9 Pa	80 mm	80 mm	24 VDC	26.4 VDC	21.6 VDC	Ball	3600 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	42 dB	Plastic	CE cURus TUV	45 CFM	1.26 mł/min	25 mm	Plastic	70000 Hrs
Qualtek FAD1-08025CBKW12-A	5.4 W	72.12 g	0.159 lb	2 Wire Leads	450 mA	0.35 in H2O	87.2 Pa	80 mm	80 mm	12 VDC	13.2 VDC	10.8 VDC	Ball	4500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	48.1 dB(A)	Plastic	CE cURus TUV	56.8 CFM	1.59 mł/min	25 mm	Plastic	70000 Hrs
Qualtek FAD1-08025CBLW11-A	1.08 W	72.12 g	0.159 lb	2 Wire Leads	0.09 A	0.068 in H2O	17 Pa	80 mm	80 mm	12 VDC	13.2 VDC	10.8 VDC	Ball	2000 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	23.6 dB(A)	Plastic	CE cURus TUV	24.4 CFM	0.683 m³/min	25 mm	Plastic	70000 Hrs
Qualtek FAD1-08025DBLW11-A	1.44 W	72.12 g	0.159 lb	2 Wire Leads	60 mA	0.068 in H2O	17 Pa	80 mm	80 mm	24 VDC	26.4 VDC	21.6 VDC	Ball	2000 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	23.6 dB(A)	Plastic	CE cURus TUV	24.4 CFM	0.683 m³/min	25 mm	Plastic	70000 Hrs
Qualtek FAD1-08025CBHW12-A	2.16 W	72.12 g	0.159 lb	2 Wire Leads	0.18 A	0.157 in H2O	39.1 Pa	80 mm	80 mm	12 VDC	13.2 VDC	10.8 VDC	Ball	3000 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	35.8 dB(A)	Plastic	CE cURus TUV	37.2 CFM	1.04 mł/min	25 mm	Plastic	70000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.47
		10	$ 7.00
		30	$ 6.32
		50	$ 6.02
		100	$ 5.63
		250	$ 5.58

Description

General part information

FAD1-08025 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 24.4 CFM (0.683m³/min) 2 Wire Leads
