RJ22S-C-A120

Active

IDEC

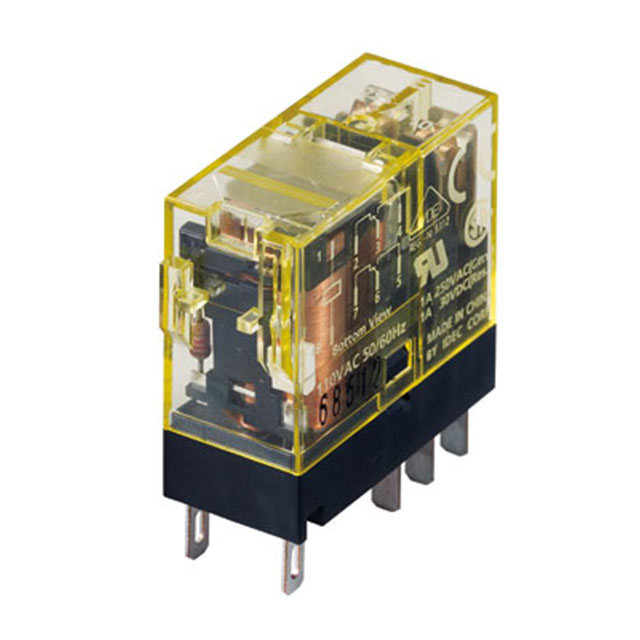

BIFURCATED RELAY DPDT AC120 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

IDEC

BIFURCATED RELAY DPDT AC120 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Load - Max Switching	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Rating (Current)	Switching Voltage	Release Time	Coil Current	Relay Type	Operate Time	Coil Resistance	Coil Voltage [Max]	Coil Voltage [Min]	Termination Style	Coil Type	Contact Form	Contact Material	Must Operate Voltage	Coil Voltage	Features	Must Release Voltage	Switching Voltage [Max]
IDEC RJ22S-C-D100	CE CSA cURus VDE	125 W 250 VA	-40 °C	70 °C	Socketable	1 A	125 VDC 250 VAC	10 ms	5.3 mA	General Purpose	15 ms	18.87 kOhms	110 VDC	100 VDC	Plug In	Non Latching	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)
IDEC RJ22S-CLR-A24	CE CSA cURus VDE	125 W 250 VA	-40 °C	70 °C	Socketable	1 A	125 VDC 250 VAC	10 ms	41.4 mA	General Purpose	15 ms	243 Ohms			Plug In	Non Latching	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	19.2 VAC	24 VAC	Lighted Indicator RC Circuit	7.2 VAC
IDEC RJ22S-CR-A12	CE CSA cURus VDE	125 W 250 VA	-40 °C	70 °C	Socketable	1 A	125 VDC 250 VAC	10 ms	75 mA	General Purpose	15 ms	62.5 Ohms			Plug In	Non Latching	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	9.6 VAC/DC	12 VAC/DC	Test Button	3.6 VAC
IDEC RJ22S-C-A120	CE CSA cURus VDE	30 W 250 VA	-40 °C	70 °C	Socketable	1 A		10 ms	7.5 mA	General Purpose	15 ms	6.4 kOhms			Plug In	Non Latching	DPDT (2 Form C)	Gold (Au) Silver Nickel (AgNi)	96 VAC	120 VAC		36 VAC	30 VDC 250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) Socketable
