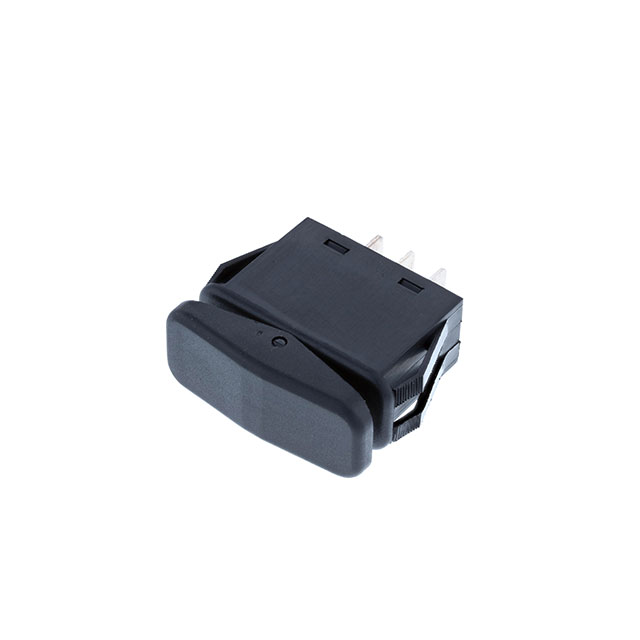

SRC1-1G-DC-1-B

Active

Switch Components

ROCKER; SP3T; POS: 3; (ON)-OFF-(ON); 10A/28VDC; BLACK; IP56; NONE

Search across all available documentation for this part.

Active

Switch Components

ROCKER; SP3T; POS: 3; (ON)-OFF-(ON); 10A/28VDC; BLACK; IP56; NONE

Technical Specifications

Parameters and characteristics for this part

Specification	SRC1-1G-DC-1-B

Actuator Marking	No Marking
Actuator Type	Convex (Reverse V)
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A, 20 A
Electrical Life	6000 Cycles
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.8 mm
Panel Cutout Dimensions [y]	15.3 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

Part	Electrical Life	Circuit	Ingress Protection	Color - Actuator/Cap	Voltage Rating - DC	Actuator Marking	Voltage Rating - AC	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Mounting Type	Current Rating (Amps)	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
Switch Components SRC1-1G-DC-1-B	6000 Cycles	SPDT	IP56 - Dust Protected Water Resistant	Black	14 V	No Marking	125 V	Quick Connect - 0.250" (6.3mm)	Convex (Reverse V)	85 °C	-20 C	10000 Steps	Panel Mount Snap-In	20 A 20 A	Mom-Off-Mom	15.3 mm	36.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 20 (AC), 20 (DC) 125 V Panel Mount, Snap-In
