0190370002
ActiveMolex

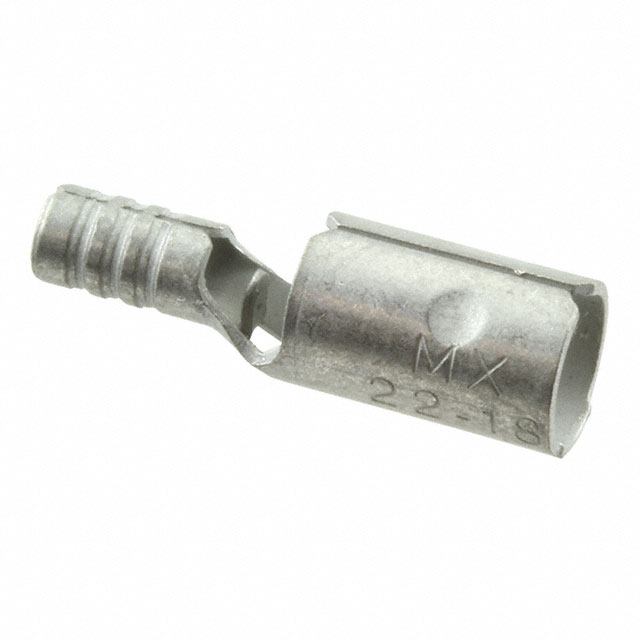

QUICK DISCONNECT TERMINAL 18-22AWG BRASS F 16MM TIN KRIMPTITE™ BAG
Deep-Dive with AI
Search across all available documentation for this part.
0190370002
ActiveMolex
QUICK DISCONNECT TERMINAL 18-22AWG BRASS F 16MM TIN KRIMPTITE™ BAG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0190370002 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Diameter - Barrel [diameter] | 3.96 mm |
| Diameter - Barrel [diameter] | 0.156 in |
| Insulation | Non-Insulated |
| Length - Barrel [x] | 9.4 mm |
| Length - Barrel [x] | 0.37 in |
| Length - Overall [x] | 0.63 " |
| Length - Overall [x] | 16 mm |
| Terminal Type | Female, Receptacle (Socket) |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.19 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.13 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.08 | |||
Description
General part information
019037 Series
Terminal Connector Female, Receptacle (Socket) 18-22 AWG Crimp Tin
