1536D

Active

Hammond Manufacturing

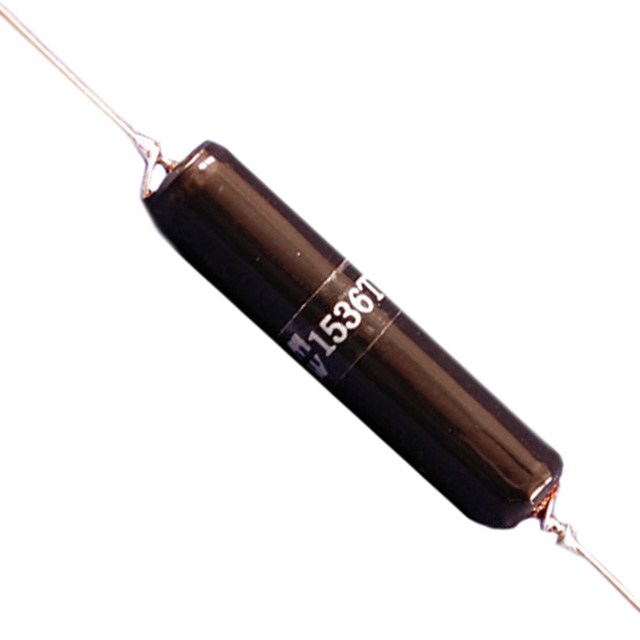

FIXED IND 3.35UH 20A 10 MOHM TH

Search across all available documentation for this part.

Active

Hammond Manufacturing

FIXED IND 3.35UH 20A 10 MOHM TH

Technical Specifications

Parameters and characteristics for this part

Part	Material - Core	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Inductance	Current Rating (Amps)	DC Resistance (DCR)	Mounting Type	Type	Frequency - Self Resonant	Package / Case	Shielding	Tolerance	Size / Dimension [z]	Size / Dimension [z]	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [diameter]
Hammond Manufacturing 1536P	Iron Powder	0.31 in	31.75 mm	1.25 "	7.87 mm	40 µH	3 A	82 mOhm	Through Hole	Drum Core Wirewound	10.4 MHz	Axial	Unshielded	20 %
Hammond Manufacturing 1536Y	Iron Powder	0.56 "	31.75 mm	1.25 "	14.22 mm	500 µH	2 A	260 mOhm	Through Hole	Drum Core Wirewound	1.17 MHz	Axial	Unshielded	20 %
Hammond Manufacturing 1536L	Iron Powder	0.31 in	23.11 mm	0.91 "	7.87 mm	4 µH	8 A	12 mOhm	Through Hole	Drum Core Wirewound	24.3 MHz	Axial	Unshielded	20 %
Hammond Manufacturing 1536D	Iron Powder	0.53 "			13.46 mm	3.35 µH	20 A	10 mOhm	Through Hole	Drum Core Wirewound	45 MHz	Axial	Unshielded	20 %	33.27 mm	1.31 "	7.9 MHz
Hammond Manufacturing 1536E	Iron Powder	0.5 in	31.75 mm	1.25 "	0.5 in	4.9 µH	15 A	16 mOhm	Through Hole	Drum Core Wirewound	42 MHz	Axial	Unshielded	20 %			7.9 MHz
Hammond Manufacturing 1536Z	Iron Powder		26.16 mm		0.5 in	1 mH	1 A	550 mOhm	Through Hole	Drum Core Wirewound		Axial	Unshielded	20 %				1.03 "	0.5 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.35 µH Unshielded Drum Core, Wirewound Inductor 20 A 10mOhm Axial
