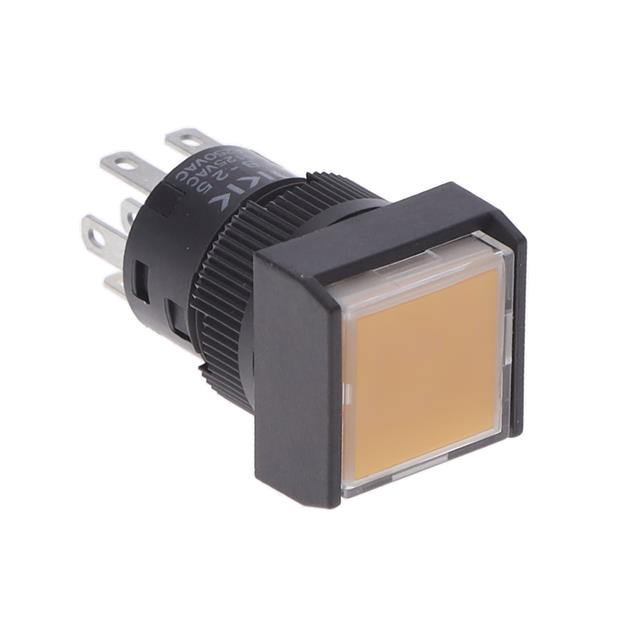

YB25SKW01-5D05-JD

Active

NKK Switches

SHORT BODY PUSHBUTTON/ILLUMINATE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB25SKW01-5D05-JD

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Voltage Reduction Lighting
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	5 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB25SK Series

Part	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Mounting Type	Illumination Type, Color	Switch Function	Voltage Rating - AC	Circuit	Features	Type	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Actuator Marking	Color - Actuator/Cap	Current Rating (Amps)	Termination Style	Termination Style	Termination Style	Mechanical Life	Electrical Life	Ingress Protection
NKK Switches YB25SKW01-5D05-JD	Button Square	50 °C	-25 °C	30 V	Panel Mount Front	Amber LED	On-Mom	125 V	DPDT	Voltage Reduction Lighting	Illuminated Standard	16 mm	5 VDC	No Marking	Clear	3 A	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	100000 Cycles
NKK Switches YB15SKG01	Plunger for Cap	70 °C	-25 °C	28 V	Panel Mount Front		On-Mom	28 V	SPDT	Tactile Feedback	Standard	16 mm		No Marking		0.4 VA	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	100000 Cycles
NKK Switches YB25SKW01-1CF24-JB	Button Square	50 °C	-25 °C	30 V	Panel Mount Front	Green/Red LED	On-Mom	125 V	DPDT	Voltage Reduction Lighting	Illuminated Standard	16 mm	24 V	No Marking	Clear	3 A	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	100000 Cycles
NKK Switches YB25SKG01-2CF12-JB	Button Square	50 °C	-25 °C	28 V	Panel Mount Front	Green/Red LED	On-Mom	28 V	DPDT	Voltage Reduction Lighting	Illuminated Standard	16 mm	12 VDC	No Marking	Clear	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	100000 Cycles
NKK Switches YB25SKW01	Plunger for Cap	70 °C	-25 °C	30 V	Panel Mount Front		On-Mom	125 V	DPDT	Voltage Reduction Lighting	Standard	16 mm		No Marking		3 A	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	100000 Cycles
NKK Switches YB25SKW01-BB	Button Square	70 °C	-25 °C	30 V	Panel Mount Front		On-Mom	125 V	DPDT	Voltage Reduction Lighting	Standard	16 mm		No Marking	White	3 A	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	100000 Cycles
NKK Switches YB25SKW01-5D-JB	Button Square	50 °C	-25 °C	30 V	Panel Mount Front	Amber LED	On-Mom	125 V	DPDT	Voltage Reduction Lighting	Illuminated Standard	16 mm	2 VDC	No Marking	Clear	3 A	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	100000 Cycles
NKK Switches YB26RKW01	Plunger for Cap	70 °C	-25 °C	30 V	Panel Mount Front		On-On	125 V	DPDT	Voltage Reduction Lighting	Standard	16 mm		No Marking		3 A	0.11 in	Quick Connect Solder	2.8 mm	200000 Cycles	100000 Cycles
NKK Switches YB15WRKW01	Plunger for Cap	70 °C	-25 °C	30 V	Panel Mount Front		On-Mom	125 V	SPDT	Tactile Feedback	Standard	16 mm		No Marking		3 A	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	100000 Cycles	IP65 - Dust Tight Water Resistant
NKK Switches YB25SKW01-5C-JB	Button Square	50 °C	-25 °C	30 V	Panel Mount Front	LED Red	On-Mom	125 V	DPDT	Voltage Reduction Lighting	Illuminated Standard	16 mm	1.9 VDC	No Marking	Clear	3 A	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	100000 Cycles
