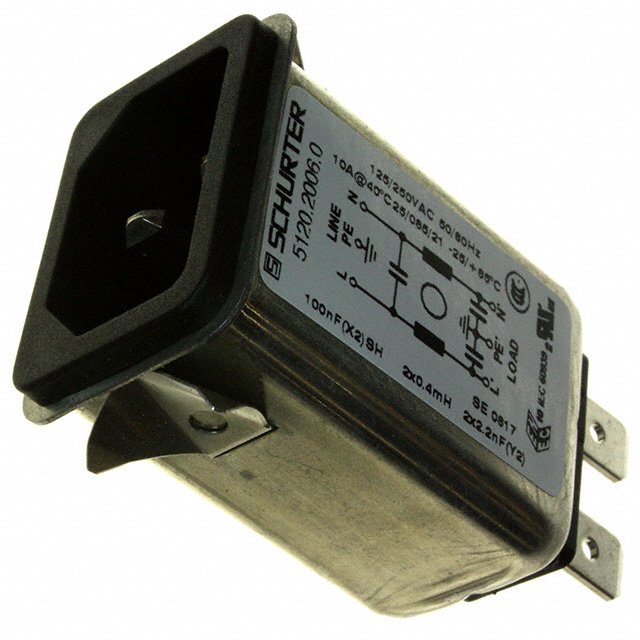

5120.2006.0

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	5120.2006.0

Accomodates a Fuse	False
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.4 mm
Panel Cutout Dimensions [y]	21.5 mm
Panel Thickness [Max]	0.079 "
Panel Thickness [Max]	2 mm
Panel Thickness [Min]	0.031 "
Panel Thickness [Min]	0.79 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Approval Agency	Filter Type	Connector Style	Voltage Rating - Appliance Inlet	Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Accomodates a Fuse	Mounting Type	Current Rating - Filter	Termination	Termination	Termination	Ingress Protection	Current Rating - Appliance Inlet	Material Flammability Rating	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]
SCHURTER Inc. 5120.2006.0	Male Blades Receptacle	CCC cULus ENEC	Filtered (EMI RFI) - Commercial	IEC 320-C14	250 VAC	Shielded	21.5 mm	29.4 mm		Panel Mount Snap-In	10 A	0.25 in	6.3 mm	Quick Connect	IP40	10 A	UL94 V-0	0.079 "	0.031 "	2 mm	0.79 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 7.81

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
