Technical Specifications
Parameters and characteristics for this part
| Specification | V-152-1A5 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 600 mA, 15 A |
| Differential Travel | 1.5 mm |
| Differential Travel | 0.06 " |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 50000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 125 gf |
| Operating Position | 0.6 in |
| Operating Position | 15.2 mm |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 1.6 mm |
| Overtravel | 0.062 in |
| Pretravel | 4 mm |
| Pretravel | 0.157 in |
| Release Force | 14 gf |
| Switch Function | On-Mom |
| Termination Style | Solder, Quick Connect |
| Termination Style | 4.7 mm, 0.187 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.40 | |
| 10 | $ 3.88 | |||
| 25 | $ 3.62 | |||
| 50 | $ 3.45 | |||
| 100 | $ 2.93 | |||
| 300 | $ 2.68 | |||
| 500 | $ 2.50 | |||
| 1000 | $ 2.42 | |||
Description
General part information

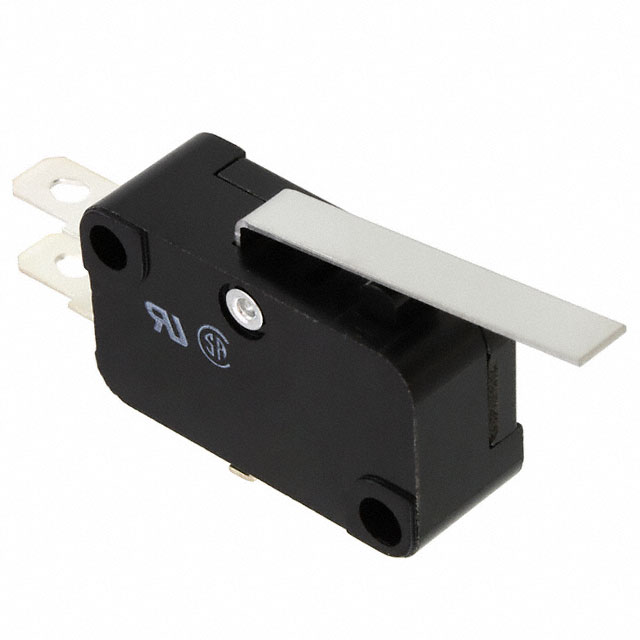

V-152 Series
Switch SPDT Chassis Mount
