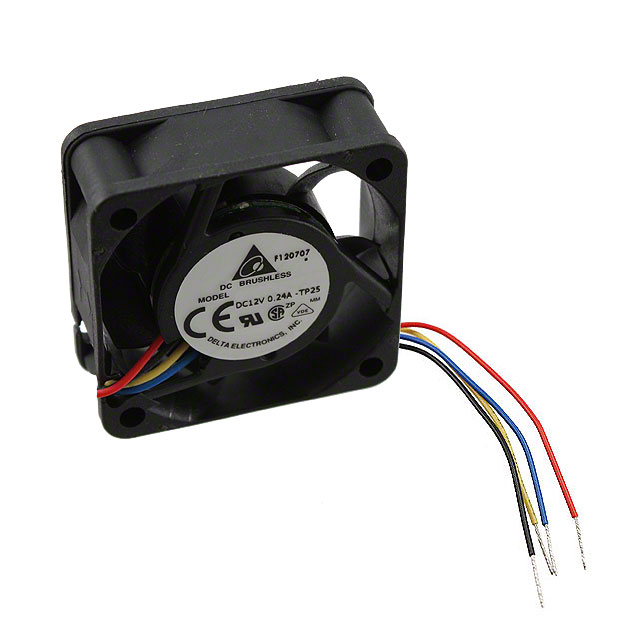

AFB0412VHB-TP25

Obsolete

Delta Electronics

DC FAN AXIAL BALL 12V 7V TO 13.8V 13CFM 36.5DB 40 X 40 X 15MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans, Electric - Component UL Cert +2

AFB0412VHB-TP25

Obsolete

Delta Electronics

DC FAN AXIAL BALL 12V 7V TO 13.8V 13CFM 36.5DB 40 X 40 X 15MM

Deep-Dive with AI

DocumentsDatasheet Fans, Electric - Component UL Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0412VHB-TP25

Air Flow	0.364 mł/min
Air Flow	13 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.18 A
Fan Type	Tubeaxial
Features	Locked Rotor Sensor, PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	36.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.16 W
RPM	9500 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.459 in H2O
Static Pressure	114.3 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.057 lb
Weight	25.85 g
Width [x]	15 mm

AFB0412 Series

Part	Material - Frame	Fan Type	Weight	Weight	Termination	Lifetime @ Temp.	Power (Watts)	Approval Agency	Air Flow	Air Flow	RPM	Noise	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Width [y]	Voltage - Rated	Static Pressure	Static Pressure	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Width [x]	Features
Delta Electronics AFB0412HHA-A	Plastic	Tubeaxial	14.06 g	0.031 lb	2 Wire Leads	70000 Hrs	600 mW	CE CSA UL VDE	0.23 mł/min	8.2 CFM	7000 RPM	31.5 dB	7 V	13.8 VDC	Ball	40 mm	Square	40 mm	10 mm	12 VDC	47.3 Pa	0.19 in H2O	Plastic	70 °C	70 °C	-10 °C	-10 °C	50 mA
Delta Electronics AFB0412SHB-TD2S	Plastic	Tubeaxial	25.85 g	0.057 lb	2 Wire Leads	70000 Hrs	3 W		0.414 mł/min	14.8 CFM	11000 RPM	41.5 dB	7 V	13.8 VDC	Ball	40 mm	Square	40 mm		12 VDC	149.7 Pa	0.601 in H2O	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.25 A	15 mm
Delta Electronics AFB0412VB-AR00	Plastic	Tubeaxial	25.85 g	0.057 lb	3 Wire Leads	70000 Hrs	2.52 W	cURus TUV	0.426 m³/min	15.2 CFM	12000 RPM	46 dB(A)	5 VDC	13.2 VDC	Ball	40 mm	Square	40 mm		12 VDC	155 Pa	0.622 in H2O	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.21 A	15 mm	Locked Rotor Sensor
Delta Electronics AFB0412HHB	Plastic	Tubeaxial	25.85 g	0.057 lb	2 Wire Leads	70000 Hrs	1.56 W	CE CSA UL VDE	0.322 m³/min	11.5 CFM	8300 RPM	32 dB	7 V	13.8 VDC	Ball	40 mm	Square	40 mm		12 VDC	89.4 Pa	0.359 in H2O	Plastic	70 °C	70 °C	-10 °C	-10 °C		15 mm
Delta Electronics AFB0412VHB-TP25	Plastic	Tubeaxial	25.85 g	0.057 lb	4 Wire Leads	70000 Hrs	2.16 W	CE CSA UL VDE	0.364 mł/min	13 CFM	9500 RPM	36.5 dB(A)	7 V	13.8 VDC	Ball	40 mm	Square	40 mm		12 VDC	114.3 Pa	0.459 in H2O	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.18 A	15 mm	Locked Rotor Sensor PWM Control
Delta Electronics AFB0412VHA-DU48	Plastic	Tubeaxial	14.06 g	0.031 lb	4 Wire Leads	70000 Hrs	1.08 W	CSA UR VDE	0.246 mł/min	8.8 CFM	8000 RPM	33 dB(A)	7 V	15 V	Ball	40 mm	Square	40 mm	10 mm	12 VDC	55.8 Pa	0.224 in H2O	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.09 A		Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics AFB0412VB-AF00	Plastic	Tubeaxial	25.85 g	0.057 lb	3 Wire Leads	70000 Hrs	2.52 W	cURus TUV	0.426 m³/min	15.2 CFM	12000 RPM	46 dB(A)	5 VDC	13.2 VDC	Ball	40 mm	Square	40 mm		12 VDC	155 Pa	0.622 in H2O	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.21 A	15 mm	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0412SHB	Plastic	Tubeaxial	25.85 g	0.057 lb	2 Wire Leads	70000 Hrs	3 W	CE CSA UL VDE	0.414 mł/min	14.8 CFM	11000 RPM	41.5 dB	7 V	13.8 VDC	Ball	40 mm	Square	40 mm		12 VDC	149.7 Pa	0.601 in H2O	Plastic	70 °C	70 °C	-10 °C	-10 °C	0.25 A	15 mm
Delta Electronics AFB0412HB-R00	Plastic	Tubeaxial	25.85 g	0.057 lb	3 Wire Leads	70000 Hrs	1.2 W	CE CSA UL VDE	0.266 m³/min	9.5 CFM	7000 RPM	28.5 dB(A)	7 V	13.8 VDC	Ball	40 mm	Square	40 mm		12 VDC	67.7 Pa	0.272 in H2O	Plastic	70 °C	70 °C	-10 °C	-10 °C	100 mA	15 mm	Locked Rotor Sensor
Delta Electronics AFB0412HB-F00	Plastic	Tubeaxial	25.85 g	0.057 lb	3 Wire Leads	70000 Hrs	1.2 W	CE CSA UL VDE	0.266 m³/min	9.5 CFM	7000 RPM	28.5 dB(A)	7 V	13.8 VDC	Ball	40 mm	Square	40 mm		12 VDC	67.7 Pa	0.272 in H2O	Plastic	70 °C	70 °C	-10 °C	-10 °C	100 mA	15 mm	Locked Rotor Protection Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AFB0412 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 13.0 CFM (0.364m³/min) 4 Wire Leads
