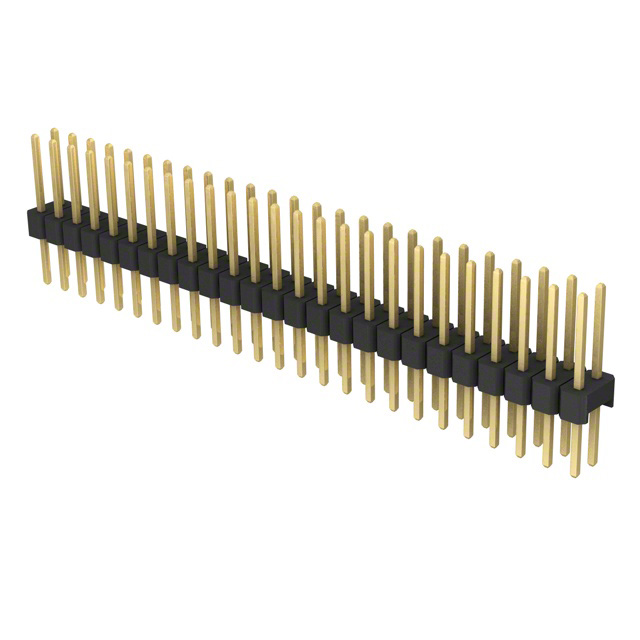

PRPC025DFBN-RC

Active

Sullins Connector Solutions

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PRPC025DFBN-RC

Active

Sullins Connector Solutions

CONN HEADER VERT 50POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC025DFBN-RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	16.17 mm
Overall Contact Length	0.637 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC025 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Style	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Shrouding	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Material	Termination	Insulation Material	Contact Finish - Mating	Contact Type	Contact Shape	Insulation Color	Mounting Type	Number of Rows	Connector Type	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Contact Length - Mating [x]	Insulation Height	Insulation Height
Sullins Connector Solutions PRPC025DABN-RC	2.54 mm	0.1 in	0.098 in	2.5 mm	Gold	-40 °C	105 ░C	Push-Pull	Board to Board Cable	0.1 in	2.54 mm	3 A	UL94 V-0	0.23 in	5.84 mm	Unshrouded	0.23 in	5.84 mm	Flash	50	Flash	Brass	Solder	Polybutylene Terephthalate (PBT)	Gold	Male Pin	Square	Black	Through Hole	2	Breakaway Header	All	0.558 in	14.18 mm
Sullins Connector Solutions PRPC025SBCN-M71RC			0.098 in	2.5 mm	Gold	-40 °C	105 ░C	Push-Pull	Board to Board Cable	0.1 in	2.54 mm	3 A	UL94 V-0			Unshrouded	0.23 in	5.84 mm	Flash		Flash	Brass	Solder	Polybutylene Terephthalate (PBT)	Gold	Male Pin	Square	Black	Through Hole Right Angle	1	Breakaway Header	All			0.32 in	8.13 mm
Sullins Connector Solutions PRPC025SFAN-RC			0.098 in	2.5 mm	Gold	-40 °C	105 ░C	Push-Pull	Board to Board Cable	0.1 in	2.54 mm	3 A	UL94 V-0			Unshrouded	0.318 "		Flash		Flash	Brass	Solder	Polybutylene Terephthalate (PBT)	Gold	Male Pin	Square	Black	Through Hole	1	Breakaway Header	All		0.537 "	0.12 in	3.05 mm	13.63 mm	8.08 mm
Sullins Connector Solutions PRPC025DFAN-RC	2.54 mm	0.1 in	0.098 in	2.5 mm	Gold	-40 °C	105 ░C	Push-Pull	Board to Board Cable	0.1 in	2.54 mm	3 A	UL94 V-0			Unshrouded	0.318 "		Flash	50	Flash	Brass	Solder	Polybutylene Terephthalate (PBT)	Gold	Male Pin	Square	Black	Through Hole	2	Breakaway Header	All		0.537 "	0.12 in	3.05 mm	13.63 mm	8.08 mm
Sullins Connector Solutions PRPC025SACN-RC			0.098 in	2.5 mm	Gold	-40 °C	105 ░C	Push-Pull	Board to Board Cable	0.1 in	2.54 mm	3 A	UL94 V-0			Unshrouded	0.23 in	5.84 mm	Flash		Flash	Brass	Solder	Polybutylene Terephthalate (PBT)	Gold	Male Pin	Square	Black	Through Hole	1	Breakaway Header	All	0.648 in	16.47 mm	0.32 in	8.13 mm
Sullins Connector Solutions PRPC025SAAN-RC			0.098 in	2.5 mm	Gold	-40 °C	105 ░C	Push-Pull	Board to Board Cable	0.1 in	2.54 mm	3 A	UL94 V-0			Unshrouded	0.23 in	5.84 mm	Flash		Flash	Brass	Solder	Polybutylene Terephthalate (PBT)	Gold	Male Pin	Square	Black	Through Hole	1	Breakaway Header	All	0.448 in	11.39 mm	0.12 in	3.05 mm
Sullins Connector Solutions PRPC025DFBN-RC	2.54 mm	0.1 in	0.098 in	2.5 mm	Gold	-40 °C	105 ░C	Push-Pull	Board to Board Cable	0.1 in	2.54 mm	3 A	UL94 V-0	0.22 in	5.58 mm	Unshrouded	0.318 "		Flash	50	Flash	Brass	Solder	Polybutylene Terephthalate (PBT)	Gold	Male Pin	Square	Black	Through Hole	2	Breakaway Header	All	0.637 in	16.17 mm				8.08 mm
Sullins Connector Solutions PRPC025DBAN-M71RC	2.54 mm	0.1 in			Gold	-40 °C	105 ░C	Push-Pull	Board to Board Cable	0.1 in	2.54 mm	3 A	UL94 V-0			Unshrouded	0.23 in	5.84 mm	Flash	50	Flash	Brass	Solder	Polybutylene Terephthalate (PBT)	Gold	Male Pin	Square	Black	Through Hole Right Angle	2	Breakaway Header	All			0.12 in	3.05 mm			0.197 in	5 mm
Sullins Connector Solutions PRPC025SADN-RC			0.098 in	2.5 mm	Gold	-40 °C	105 ░C	Push-Pull	Board to Board Cable	0.1 in	2.54 mm	3 A	UL94 V-0			Unshrouded	0.23 in	5.84 mm	Flash		Flash	Brass	Solder	Polybutylene Terephthalate (PBT)	Gold	Male Pin	Square	Black	Through Hole	1	Breakaway Header	All	0.748 in	19.01 mm	0.42 in	10.67 mm
Sullins Connector Solutions PRPC025DAAN-RC	2.54 mm	0.1 in	0.098 in	2.5 mm	Gold	-40 °C	105 ░C	Push-Pull	Board to Board Cable	0.1 in	2.54 mm	3 A	UL94 V-0			Unshrouded	0.23 in	5.84 mm	Flash	50	Flash	Brass	Solder	Polybutylene Terephthalate (PBT)	Gold	Male Pin	Square	Black	Through Hole	2	Breakaway Header	All	0.448 in	11.39 mm	0.12 in	3.05 mm
