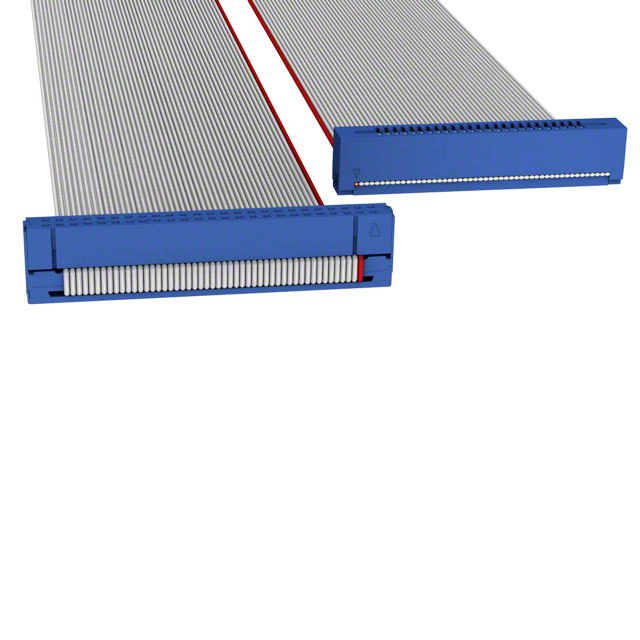

C3BES-5036G

Active

CW Industries

IDC CABLE - CSR50S/AE50G/CCE50S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSR50S/AE50G/CCE50S

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Cable	Pitch - Cable	Color	Connector Type	Contact Finish	Length	Length	Length	Features	Number of Rows	Pitch - Connector	Pitch - Connector	Shielding	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Length [x]	Length [x]
CW Industries C3BES-5006M	0.05 "	1.27 mm	Multiple Ribbon	Socket to Card Edge	Tin	152.4 mm	6 "	0.5 '	Strain Relief	2	0.1 in	2.54 mm	Unshielded	50	2.54 µm	100 µin	IDC
CW Industries C3BES-5036M	0.05 "	1.27 mm	Multiple Ribbon	Socket to Card Edge	Tin				Strain Relief	2	0.1 in	2.54 mm	Unshielded	50	2.54 µm	100 µin	IDC	3 ft	914.4 mm
CW Industries C3BES-5036G	0.05 "	1.27 mm		Socket to Card Edge	Tin				Strain Relief	2	0.1 in	2.54 mm	Unshielded	50	2.54 µm	100 µin	IDC	3 ft	914.4 mm
CW Industries C3BES-5018G	0.05 "	1.27 mm		Socket to Card Edge	Tin				Strain Relief	2	0.1 in	2.54 mm	Unshielded	50	2.54 µm	100 µin	IDC	1.5 ft	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Cable Assembly Rectangular Socket to Card Edge 3.00' (914.40mm)
