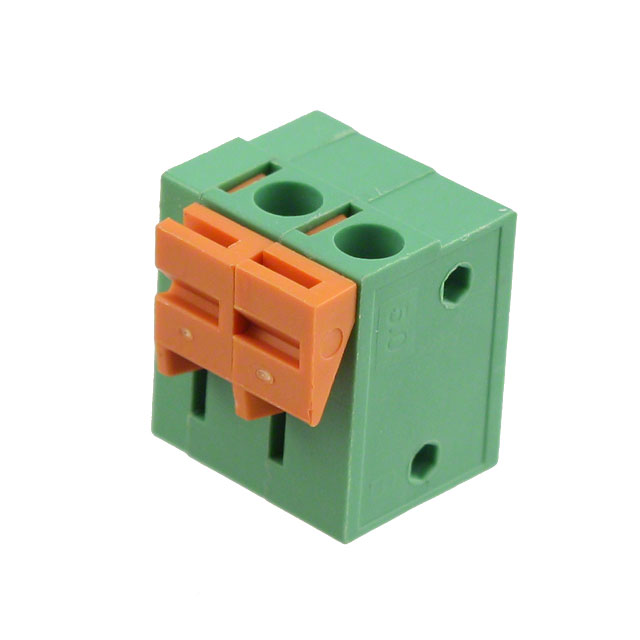

HA0231500000G

Active

Amphenol Anytek

TERM BLK 2POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

HA0231500000G

Active

Amphenol Anytek

TERM BLK 2POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HA0231500000G

Clamp Material - Plating	Stainless, Steel
Color	Green
Contact Material - Plating	Copper Alloy - Tin Plated
Current	10 A
Features	Lever Actuated
Housing Material	Thermoplastic
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	2
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring

HA02 Series

Part	Housing Material	Color	Wire Termination	Voltage	Clamp Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Mating Orientation	Pitch [x]	Pitch [x]	Contact Material - Plating [custom]	Wire Gauge [Min]	Wire Gauge [Max]	Features	Mounting Type	Current	Number of Levels	Positions Per Level	Contact Material - Plating
Amphenol Anytek HA0221500000G	Thermoplastic	Green	Push-In Spring Screwless - Leg Spring	300 V	Stainless Steel	-40 °C	115 °C	Horizontal with Board	0.3 in	7.62 mm	Brass - Tin Plated	14 AWG	24 AWG	Lever Actuated	Through Hole	10 A	1	2
Amphenol Anytek HA0270500000G	Thermoplastic	Green	Push-In Spring Screwless - Leg Spring	300 V	Stainless Steel	-40 °C	115 °C	Vertical with Board	0.15 in	3.81 mm		16 AWG	26 AWG	Lever Actuated	Through Hole	6 A	1	2	Copper Alloy - Tin Plated
Amphenol Anytek HA0240500000G	Thermoplastic	Green	Push-In Spring Screwless - Leg Spring	300 V	Stainless Steel	-40 °C	115 °C	Vertical with Board	0.394 in	10 mm	Brass - Tin Plated	14 AWG	24 AWG	Lever Actuated	Through Hole	10 A	1	2
Amphenol Anytek HA0271500000G	Thermoplastic	Green	Push-In Spring Screwless - Leg Spring	300 V	Stainless Steel	-40 °C	115 °C	Horizontal with Board	0.15 in	3.81 mm		16 AWG	26 AWG	Lever Actuated	Through Hole	6 A	1	2	Copper Alloy - Tin Plated
Amphenol Anytek HA0231500000G	Thermoplastic	Green	Push-In Spring Screwless - Leg Spring	300 V	Stainless Steel	-40 °C	115 °C	Horizontal with Board	0.197 in	5 mm		14 AWG	24 AWG	Lever Actuated	Through Hole	10 A	1	2	Copper Alloy - Tin Plated
Amphenol Anytek HA0261500000G	Thermoplastic	Green	Push-In Spring Screwless - Leg Spring	300 V	Stainless Steel	-40 °C	115 °C	Horizontal with Board	0.295 in	7.5 mm	Brass - Tin Plated	14 AWG	24 AWG	Lever Actuated	Through Hole	10 A	1	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.66
		10	$ 0.41
		25	$ 0.35
		50	$ 0.32
		100	$ 0.31
		250	$ 0.26
		500	$ 0.25
		2160	$ 0.23

Description

General part information

HA02 Series

2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
