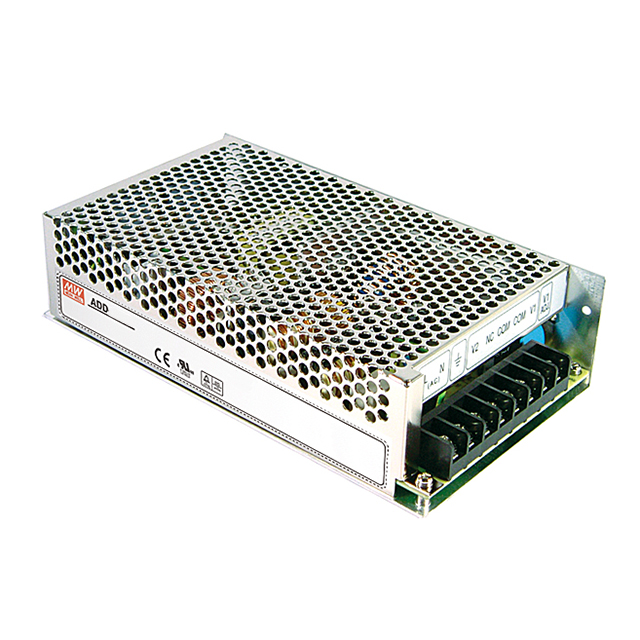

ADS-15524

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 5V 154W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 5V 154W

Technical Specifications

Parameters and characteristics for this part

Specification	ADS-15524

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	5.8 A
Current - Output 2	3 A
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	154 W
Size / Dimension [x]	7.83 in
Size / Dimension [x]	199 mm
Size / Dimension [y]	4.33 "
Size / Dimension [y]	110 mm
Size / Dimension [z]	1.97 "
Size / Dimension [z]	50 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	88 VAC, 124 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V
Voltage - Output 2	5 V

Part	Type	Voltage - Output 2	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Voltage - Isolation	Number of Outputs	Power (Watts)	Features	Current - Output 2	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Minimum Load Required
MEAN WELL USA Inc. ADS-15524	Enclosed	5 V	Chassis Mount	88 VAC 124 VDC	264 VAC 370 VDC	24 V	3000 V	2	154 W	Adjustable Output PFC Universal Input	3 A	CB CE cURus TUV	4.33 "	7.83 in	199 mm	110 mm	1.97 "	50 mm	5.8 A	-10 °C	60 °C	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 2 Output 24V 5V 88 ~ 264 VAC, 124 ~ 370 VDC Input
