51-235.022DF

Active

EAO

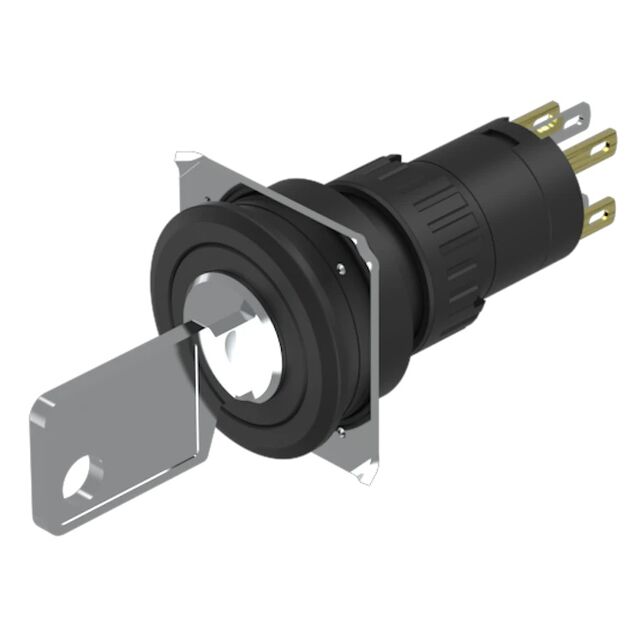

SWITCH KEYLOCK 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	51-235.022DF

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	DPST-NO/NC
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Depth Behind Flange	44.5 mm
Features	IP65
Key Removable Positions	1 only
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-Off, Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	250 V

Part	Voltage Rating - AC	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination Style	Circuit	Features	Number of Positions	Depth Behind Flange	Panel Cutout Dimensions [diameter]	Contact Timing	Angle of Throw	Key Removable Positions	Switch Function	Termination Style	Termination Style
EAO 51-235.022D	250 V	Flat Key	55 °C	-25 °C	5 A	Solder Lug	DPST-NO/NC	IP65	2	36 mm	16 mm	Not Specified	90 °	1 only	Off-On On-Off
EAO 51-235.022DF	250 V	Flat Key	55 °C	-25 °C	5 A	Quick Connect Solder	DPST-NO/NC	IP65	2	44.5 mm	22.3 mm	Not Specified	90 °	1 only	Off-On On-Off	0.11 in	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
