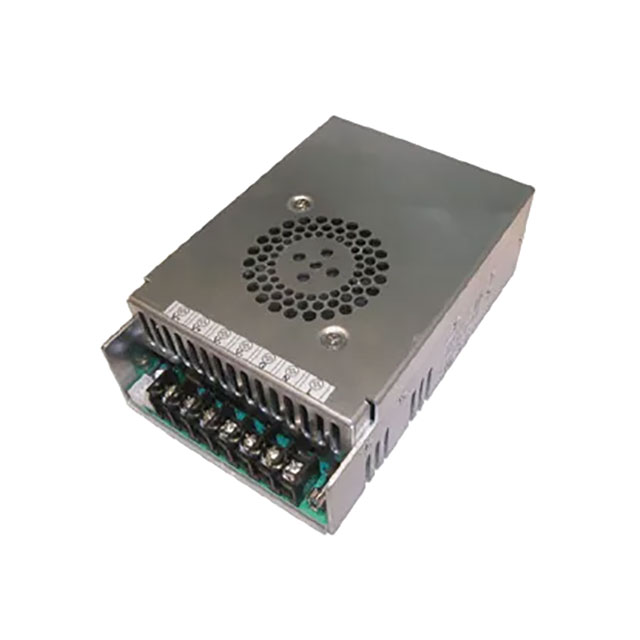

VF-S320-24A-CF-1
ActiveCUI Inc.
AC/DC CONVERTER 24V 320W
Deep-Dive with AI
Search across all available documentation for this part.
VF-S320-24A-CF-1
ActiveCUI Inc.
AC/DC CONVERTER 24V 320W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VF-S320-24A-CF-1 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC, EN, TUV, UL, CB Scheme, SIQ |
| Current - Output 1 | 13.33 A |
| Efficiency | 83 % |
| Features | Adjustable Output, PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 320 W |
| Size / Dimension [x] | 152.4 mm |
| Size / Dimension [x] | 6 in |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [z] | 50.8 mm |
| Size / Dimension [z] | 2 " |
| Standard Number | 62368-1, 61000-3-3, 61000-3-2, 55024, 60950-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 132 VAC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 180 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
VF-S320 Series
| Part | Type | Mounting Type | Voltage - Isolation | Current - Output 1 | Features | Approval Agency | Efficiency | Number of Outputs | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Power (Watts) | Standard Number | Applications | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Minimum Load Required | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Inc. | Open Frame | Chassis Mount | 3000 V | 3.33 A | Adjustable Output PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 83 % | 1 | 4 " | 101.6 mm | 152.4 mm | 6 in | 38.1 mm | 1.5 " | 320 W | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | ITE (Commercial) | 54 V | 90 VAC 180 VAC | 132 VAC 264 VAC | 70 °C | 0 °C | |||
CUI Inc. | Enclosed | Chassis Mount | 3000 V | 13.33 A | Adjustable Output PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 83 % | 1 | 4 " | 101.6 mm | 177.8 mm | 7 " | 40.6 mm | 1.6 " | 320 W | 55024 55032 Class A 55032 Class B 61000-3-2 61000-3-3 62368-1 | ITE (Commercial) | 24 V | 90 VAC 180 VAC | 132 VAC 264 VAC | 70 °C | 0 °C | |||
CUI Inc. | Enclosed | Chassis Mount | 3000 V | 17.78 A | Adjustable Output PFC Standby Output | CB Scheme EN IEC SIQ TUV UL | 83 % | 1 | 4 " | 177.8 mm | 7 " | 1.55 in | 320 W | 55024 60950-1 61000-3-2 61000-3-3 62368-1 | ITE (Commercial) | 18 V | 90 VAC 180 VAC | 132 VAC 264 VAC | 70 °C | 0 °C | 39.3 mm | 101.6 mm | |||
CUI Inc. | Enclosed | Chassis Mount | 3000 V | 13.33 A | Adjustable Output PFC Standby Output | CB Scheme EN IEC SIQ TUV UL | 83 % | 1 | 4 " | 177.8 mm | 7 " | 1.55 in | 320 W | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | ITE (Commercial) | 24 V | 90 VAC 180 VAC | 132 VAC 264 VAC | 70 °C | 0 °C | 39.3 mm | 101.6 mm | |||
CUI Inc. | Enclosed | Chassis Mount | 3000 V | 8.89 A | Adjustable Output PFC | CB Scheme EN IEC SIQ TUV UL | 83 % | 1 | 4 " | 101.6 mm | 177.8 mm | 7 " | 40.6 mm | 1.6 " | 320 W | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | ITE (Commercial) | 36 V | 90 VAC 180 VAC | 132 VAC 264 VAC | 70 °C | 0 °C | |||
CUI Inc. | Open Frame | Chassis Mount | 3000 V | 3.75 A | Adjustable Output PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 83 % | 1 | 4 " | 101.6 mm | 152.4 mm | 6 in | 38.1 mm | 1.5 " | 320 W | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | ITE (Commercial) | 48 V | 90 VAC 180 VAC | 132 VAC 264 VAC | 70 °C | 0 °C | |||
CUI Inc. | Open Frame | Chassis Mount | 3000 V | 10 A | Adjustable Output PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 83 % | 1 | 4 " | 101.6 mm | 152.4 mm | 6 in | 38.1 mm | 1.5 " | 320 W | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | ITE (Commercial) | 18 V | 90 VAC 180 VAC | 132 VAC 264 VAC | 70 °C | 0 °C | |||
CUI Inc. | Enclosed | Chassis Mount | 3000 V | 17.78 A | Adjustable Output PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 83 % | 1 | 4 " | 101.6 mm | 177.8 mm | 7 " | 40.6 mm | 1.6 " | 320 W | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | ITE (Commercial) | 18 V | 90 VAC 180 VAC | 132 VAC 264 VAC | 70 °C | 0 °C | |||
CUI Inc. | Open Frame | Chassis Mount | 3000 V | 27 A | Adjustable Output PFC Universal Input | CB Scheme EN IEC SIQ TUV UL | 75 % | 1 | 4 " | 101.6 mm | 152.4 mm | 6 in | 38.1 mm | 1.5 " | 320 W | 55024 60950-1 61000-3-2 61000-3-3 62368-1 | ITE (Commercial) | 5 V | 90 VAC 180 VAC | 132 VAC 264 VAC | 70 °C | 0 °C | |||
CUI Inc. | Enclosed | Chassis Mount | 3000 V | 13.33 A | Adjustable Output PFC | CB Scheme EN IEC SIQ TUV UL | 83 % | 1 | 4 " | 101.6 mm | 152.4 mm | 6 in | 50.8 mm | 2 " | 320 W | 55024 60950-1 61000-3-2 61000-3-3 62368-1 | ITE (Commercial) | 24 V | 90 VAC 180 VAC | 132 VAC 264 VAC | 70 °C | 0 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 192.74 | |
| 5 | $ 186.72 | |||
| 10 | $ 180.69 | |||
| 25 | $ 174.67 | |||
| 50 | $ 168.65 | |||
Description
General part information
VF-S320 Series
Enclosed AC DC Converters 1 Output 24V 90 ~ 132 VAC, 180 ~ 264 VAC Input
